PARD TS31/LRF 384×288 Thermal Imaging Scope with Laser Rangefinder
PARD TS31/LRF 384×288 Thermal Imaging Scope with Laser Rangefinder
In stock
Have a question?
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /09/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
The PARD TS31/LRF Thermal Imaging Scope combines high-resolution thermal imaging, laser rangefinding, digital recording, Wi-Fi connectivity, and multiple viewing modes in a durable aluminium-alloy housing.
Featuring a 384 × 288 thermal sensor, 12 μm pixel pitch, 50 Hz frame rate, and an 800 × 800 IPS display, the TS31/LRF delivers detailed thermal observation in darkness, low-light conditions, fog, and other challenging environments.
Four objective-lens configurations are available — 19 mm, 25 mm, 35 mm, and 45 mm — allowing users to select the viewing range and magnification best suited to their outdoor observation requirements.
Key Features
- 384 × 288 thermal imaging resolution
- 12 μm pixel pitch
- 35 mK thermal sensitivity
- 50 Hz refresh rate

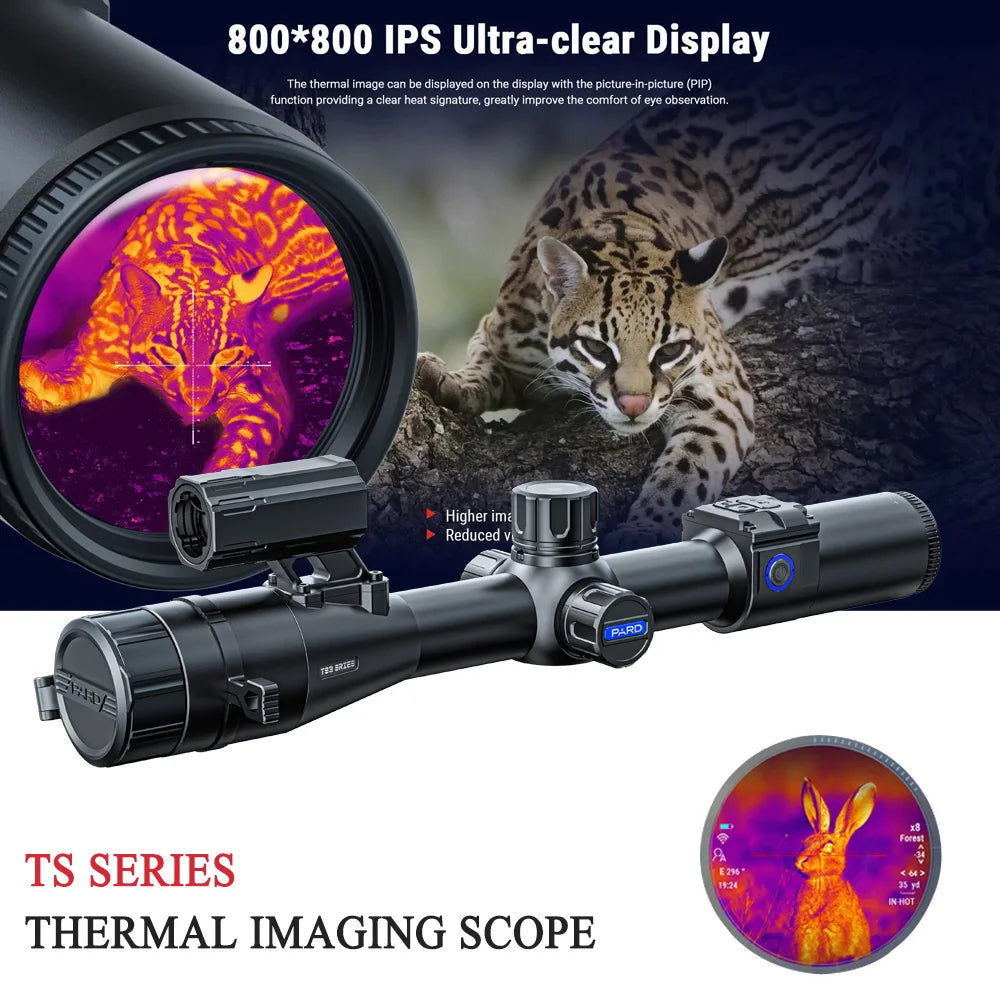

- 800 × 800 IPS display
- Integrated laser rangefinder
- Rangefinding distance up to 1,000 m / 1,200 yd
- 19 mm, 25 mm, 35 mm and 45 mm lens options
- Multiple thermal image modes
- Photo and video recording
- TF card support up to 128 GB
- Wi-Fi connectivity
- IP67 weather-resistant construction
- Aluminium-alloy housing
- Rechargeable 18650 lithium-ion battery
- 100 mm eye relief
- Red, white, yellow and green reticle colours
Product Specifications
- Model: TS31/LRF
- Product Type: Thermal Imaging Scope
- Thermal Resolution: 384 × 288 Pixels
- Pixel Pitch: 12 × 12 μm
- NETD: 35 mK
- Frame Rate: 50 Hz
- Display: 800 × 800 IPS LCD
- Objective Lens Options: 19 mm / 25 mm / 35 mm / 45 mm
- Optical Magnification: 2× / 2.6× / 3.7× / 4.7×
- Eye Relief: 100 mm
- Laser Rangefinder: Up to 1,000 m / 1,200 yd
- Photo Resolution: 1536 × 1536 Pixels
- Video Resolution: 768 × 768 Pixels
- Storage: TF Card up to 128 GB
- Wi-Fi: Yes
- Battery: Rechargeable 18650 Lithium-Ion
- Operating Time: 6 Hours
- Protection Rating: IP67
- Housing Material: Aluminium Alloy
- Reticle Colours: Red / White / Yellow / Green
Available Lens Options
19 mm Lens
- Optical magnification: 2×
- Wide field of view for scanning and general thermal observation
25 mm Lens
- Optical magnification: 2.6×
- Balanced viewing range and field of view
35 mm Lens
- Optical magnification: 3.7×
- Increased magnification for longer-distance observation
45 mm Lens
- Optical magnification: 4.7×
- Highest optical magnification within the listed TS31/LRF configurations
Thermal Imaging Performance
The 384 × 288 thermal detector identifies differences in infrared energy and converts them into a visible thermal image. This allows observation without relying on visible light.
The 50 Hz refresh rate provides smooth image movement when scanning outdoor areas or observing moving subjects.
Thermal Image Modes
Seven thermal display modes are available:
- White Hot
- Black Hot
- Red Hot
- Fusion 1
- Fusion 2
- Iron Red 1
- Iron Red 2
These viewing modes provide different representations of thermal information for changing environments and viewing preferences.
Integrated Laser Rangefinder
The built-in laser rangefinder provides distance measurement up to 1,000 metres / 1,200 yards, supporting convenient distance assessment while observing through the device.
Detection Range
Depending on the selected lens configuration:
- Human Detection: 800–1,700 m
- Vehicle Detection: 1,800–3,000 m
Detection performance is influenced by target size, temperature contrast, atmospheric conditions and the selected objective lens.
Photo, Video & Storage
The TS31/LRF supports integrated digital recording:
- Photo Resolution: 1536 × 1536
- Video Resolution: 768 × 768
- Storage: TF card up to 128 GB
This allows thermal observations to be captured and stored directly on the device.
IP67 Aluminium-Alloy Construction
The aluminium-alloy housing provides a durable structure for outdoor operation, while the IP67 protection rating provides resistance against dust and water exposure within the limits of the rating.
Battery System
The TS31/LRF uses a rechargeable 18650 lithium-ion battery and provides 6 hours of operating time under the stated configuration.
Suitable Applications
The PARD TS31/LRF is suitable for lawful uses including wildlife observation, farm and livestock monitoring, outdoor exploration, property observation, search activities, nighttime viewing, and general thermal observation.
Description
Description
The PARD TS31/LRF Thermal Imaging Scope combines high-resolution thermal imaging, laser rangefinding, digital recording, Wi-Fi connectivity, and multiple viewing modes in a durable aluminium-alloy housing.
Featuring a 384 × 288 thermal sensor, 12 μm pixel pitch, 50 Hz frame rate, and an 800 × 800 IPS display, the TS31/LRF delivers detailed thermal observation in darkness, low-light conditions, fog, and other challenging environments.
Four objective-lens configurations are available — 19 mm, 25 mm, 35 mm, and 45 mm — allowing users to select the viewing range and magnification best suited to their outdoor observation requirements.
Key Features
- 384 × 288 thermal imaging resolution
- 12 μm pixel pitch
- 35 mK thermal sensitivity
- 50 Hz refresh rate
- 800 × 800 IPS display
- Integrated laser rangefinder
- Rangefinding distance up to 1,000 m / 1,200 yd
- 19 mm, 25 mm, 35 mm and 45 mm lens options
- Multiple thermal image modes
- Photo and video recording
- TF card support up to 128 GB
- Wi-Fi connectivity
- IP67 weather-resistant construction
- Aluminium-alloy housing
- Rechargeable 18650 lithium-ion battery
- 100 mm eye relief
- Red, white, yellow and green reticle colours
Product Specifications
- Model: TS31/LRF
- Product Type: Thermal Imaging Scope
- Thermal Resolution: 384 × 288 Pixels
- Pixel Pitch: 12 × 12 μm
- NETD: 35 mK
- Frame Rate: 50 Hz
- Display: 800 × 800 IPS LCD
- Objective Lens Options: 19 mm / 25 mm / 35 mm / 45 mm
- Optical Magnification: 2× / 2.6× / 3.7× / 4.7×
- Eye Relief: 100 mm
- Laser Rangefinder: Up to 1,000 m / 1,200 yd
- Photo Resolution: 1536 × 1536 Pixels
- Video Resolution: 768 × 768 Pixels
- Storage: TF Card up to 128 GB
- Wi-Fi: Yes
- Battery: Rechargeable 18650 Lithium-Ion
- Operating Time: 6 Hours
- Protection Rating: IP67
- Housing Material: Aluminium Alloy
- Reticle Colours: Red / White / Yellow / Green
Available Lens Options
19 mm Lens
- Optical magnification: 2×
- Wide field of view for scanning and general thermal observation
25 mm Lens
- Optical magnification: 2.6×
- Balanced viewing range and field of view
35 mm Lens
- Optical magnification: 3.7×
- Increased magnification for longer-distance observation
45 mm Lens
- Optical magnification: 4.7×
- Highest optical magnification within the listed TS31/LRF configurations
Thermal Imaging Performance
The 384 × 288 thermal detector identifies differences in infrared energy and converts them into a visible thermal image. This allows observation without relying on visible light.
The 50 Hz refresh rate provides smooth image movement when scanning outdoor areas or observing moving subjects.
Thermal Image Modes
Seven thermal display modes are available:
- White Hot
- Black Hot
- Red Hot
- Fusion 1
- Fusion 2
- Iron Red 1
- Iron Red 2
These viewing modes provide different representations of thermal information for changing environments and viewing preferences.
Integrated Laser Rangefinder
The built-in laser rangefinder provides distance measurement up to 1,000 metres / 1,200 yards, supporting convenient distance assessment while observing through the device.
Detection Range
Depending on the selected lens configuration:
- Human Detection: 800–1,700 m
- Vehicle Detection: 1,800–3,000 m
Detection performance is influenced by target size, temperature contrast, atmospheric conditions and the selected objective lens.
Photo, Video & Storage
The TS31/LRF supports integrated digital recording:
- Photo Resolution: 1536 × 1536
- Video Resolution: 768 × 768
- Storage: TF card up to 128 GB
This allows thermal observations to be captured and stored directly on the device.
IP67 Aluminium-Alloy Construction
The aluminium-alloy housing provides a durable structure for outdoor operation, while the IP67 protection rating provides resistance against dust and water exposure within the limits of the rating.
Battery System
The TS31/LRF uses a rechargeable 18650 lithium-ion battery and provides 6 hours of operating time under the stated configuration.
Suitable Applications
The PARD TS31/LRF is suitable for lawful uses including wildlife observation, farm and livestock monitoring, outdoor exploration, property observation, search activities, nighttime viewing, and general thermal observation.
