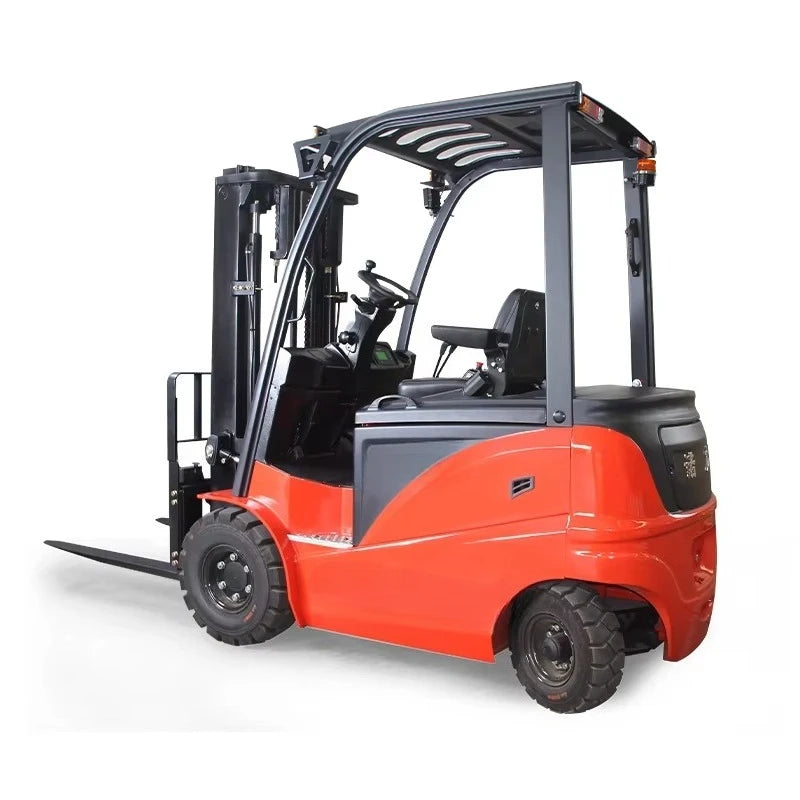

Improve pallet handling, warehouse stacking, truck loading, and industrial material transport with the CPD-35 3.5-Ton Electric Counterbalance Forklift. Designed for seated operation, this heavy-duty electric forklift combines a 3,500 kg lifting capacity, lithium-ion power system, two-stage mast, pneumatic tyres, and hydraulic braking system for commercial and industrial material handling.

The electric drivetrain provides quiet operation with no direct exhaust emissions during use, making the CPD-35 suitable for warehouses, manufacturing facilities, logistics centres, loading areas, and paved industrial yards.

Key Features

• 3,500 kg rated lifting capacity
• 3,000 mm standard lifting height
• Lithium-ion battery system
• 300Ah battery capacity
• Seated operator configuration
• Two-stage mast
• Optional three-stage mast
• 6° forward / 10° rearward mast tilt
• Pneumatic industrial tyres
• Hydraulic service brakes
• Mechanical parking brake
• Reinforced dual hydraulic lift cylinders
• 13 km/h loaded travel speed
• 15 km/h unloaded travel speed
• 1,820 mm turning radius
• Optional hydraulic side shifter
• Multiple fork-length options
• Custom lift-height configurations
• Video technical support
• Spare-parts support
• 1-year warranty

Product Specifications

• Model: CPD-35
• Product Type: Electric Counterbalance Forklift
• Condition: New
• Operating Mode: Seated
• Rated Lifting Capacity: 3,500 kg
• Load Centre: 500 mm
• Power Source: Rechargeable Electric Battery
• Battery Type: Lithium-Ion
• Battery Capacity: 300Ah
• Charging Time: 4–5 Hours
• Standard Mast: Two-Stage
• Optional Mast: Three-Stage
• Standard Lift Height: 3,000 mm
• Mast Tilt: 6° Forward / 10° Rearward
• Standard Fork Dimensions: 920 × 100 × 35 mm
• Fork Length: 920 mm
• Extended Fork Options: 1,070–1,520 mm
• Wheelbase: 1,360 mm
• Turning Radius: 1,820 mm
• Tyre Type: Pneumatic
• Loaded Travel Speed: 13 km/h
• Unloaded Travel Speed: 15 km/h
• Service Brake: Hydraulic
• Parking Brake: Mechanical Handbrake
• Lift Cylinders: Reinforced Dual Hydraulic Cylinders
• Side Shifter: Optional
• Self-Weight: 3,260 kg
• Operating Surfaces: Indoor Industrial Floors & Paved Outdoor Areas
• Warranty: 1 Year

3,500 kg Lifting Capacity

The CPD-35 provides a 3.5-ton rated lifting capacity at a 500 mm load centre, supporting the handling of palletized goods, manufacturing materials, machinery components, building materials, packaged products, and other industrial loads.

The counterbalance chassis provides the stability required for regular lifting, transporting, loading, and stacking operations.

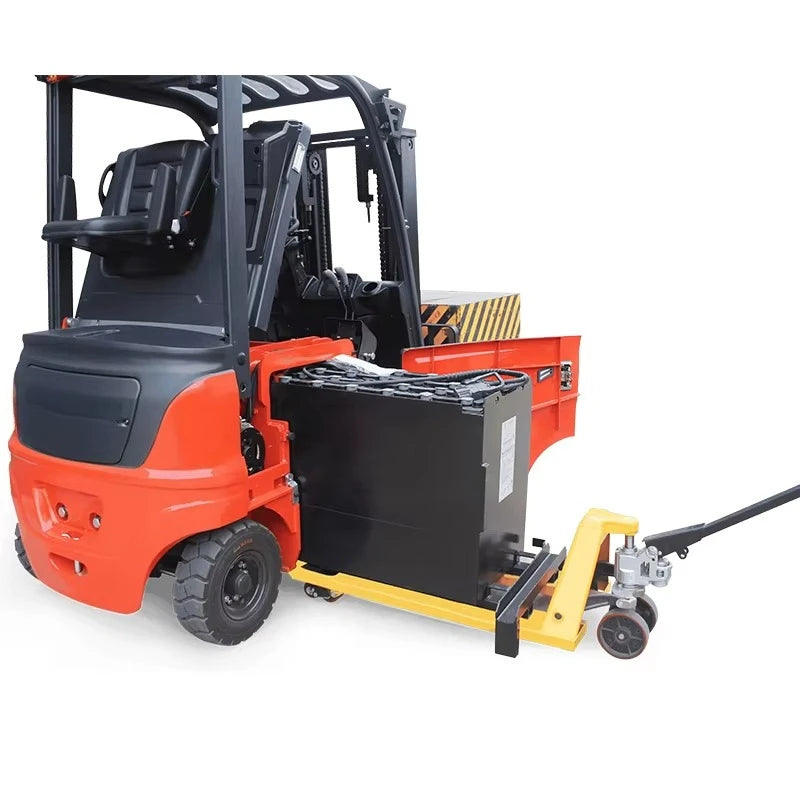

Lithium-Ion Electric Power

The lithium-ion battery system provides rechargeable electric power for demanding warehouse and industrial applications.

Key benefits include:

• Quiet electric operation
• No direct exhaust emissions during operation
• Smooth acceleration and low-speed control
• Reduced engine-related maintenance
• Convenient indoor operation
• Rechargeable battery power
• 4–5 hour charging time

Two-Stage Mast

The standard two-stage mast provides a 3,000 mm lifting height for everyday warehouse and loading operations.

The mast offers 6° forward tilt and 10° rearward tilt, providing additional control when positioning and transporting loads.

A three-stage mast is available for applications requiring increased lifting height and more specialized warehouse configurations.

Fork Configuration

Standard fork dimensions are:

• Length: 920 mm
• Width: 100 mm
• Thickness: 35 mm

Extended fork lengths from 1,070 mm to 1,520 mm are available for different pallet and load-handling requirements.

Optional Side Shifter

An optional side shifter allows the operator to move the forks horizontally without repositioning the entire forklift.

This improves load positioning during:

• Truck loading and unloading
• Pallet alignment
• Warehouse rack placement
• Container handling
• Production-line supply
• Tight positioning operations

Travel and Manoeuvrability

The CPD-35 combines industrial lifting capacity with practical manoeuvrability.

• Loaded Travel Speed: 13 km/h
• Unloaded Travel Speed: 15 km/h
• Turning Radius: 1,820 mm
• Wheelbase: 1,360 mm

The compact turning radius supports operation in warehouses, loading areas, and industrial environments where efficient positioning is important.

Hydraulic Braking System

The forklift uses a hydraulic service-brake system together with a mechanical hand-operated parking brake.

Reinforced dual hydraulic lift cylinders provide controlled lifting and lowering performance during regular pallet and material-handling operations.

Pneumatic Industrial Tyres

Pneumatic tyres provide traction and riding comfort across suitable working surfaces, including:

• Warehouse entrances
• Loading bays
• Manufacturing facilities
• Smooth concrete surfaces
• Paved industrial yards
• Distribution centres
• Outdoor paved work areas

Suitable Applications

The CPD-35 Electric Forklift is suitable for:

• Warehouses
• Manufacturing plants
• Logistics centres
• Distribution facilities
• Building-material operations
• Retail distribution
• Loading docks
• Machinery workshops
• Agricultural storage
• Food and beverage facilities
• Production facilities
• Industrial storage areas
• Paved outdoor yards

Customization Options

Available configurations include:

• Two-stage or three-stage mast
• Custom lift height
• Extended forks
• Side shifter
• Battery capacity
• Charger configuration
• Tyre configuration
• Operator cabin
• Weather protection
• Warning lights
• Mirrors
• Body colour
• Company logo

After-Sales Support

Support includes:

• Video technical assistance
• Remote troubleshooting
• Spare-parts support
• 1-year warranty

Safety Information

Only trained and authorized operators should use the forklift. Never exceed the 3,500 kg rated capacity shown on the machine capacity plate.

Inspect the forks, mast, lift chains, pneumatic tyres, hydraulic system, brakes, battery, steering, and warning equipment before operation. Keep loads lowered while travelling and keep personnel clear of raised loads.
