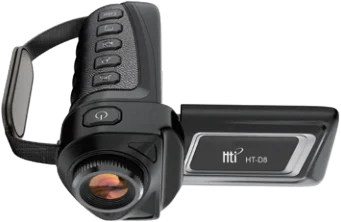

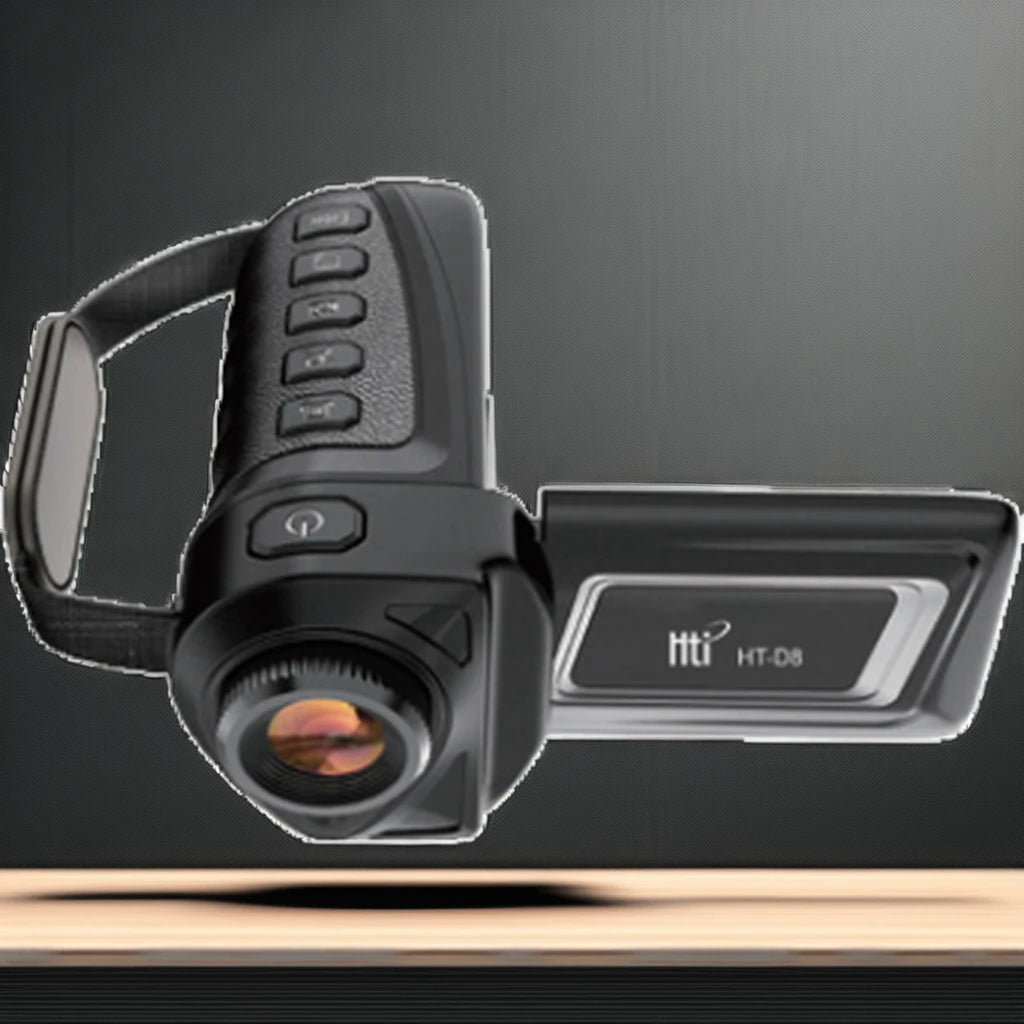

The HT-D9 Thermal Imaging Monocular is a high-resolution handheld thermal viewer designed for wildlife observation, farm monitoring, property inspection, electrical inspection, machinery maintenance, building inspection, search support and general thermal observation.
At the core of the HT-D9 is a 640 × 512 uncooled infrared detector with a 12 μm pixel pitch, providing detailed thermal imaging for detecting and observing heat signatures in darkness and visually challenging environments. The system operates at approximately 25 Hz and features NETD ≤60 mK thermal sensitivity.
A 3.5-inch colour TFT display with 640 × 480 resolution provides a clear viewing interface, while five thermal colour palettes allow users to select the most suitable presentation for different thermal scenes. Integrated multi-scale image enhancement and automatic shutter correction further support clear and consistent thermal imaging.
The HT-D9 also includes thermal image capture, JPG photo format, 8GB built-in storage and a rechargeable 26650 lithium battery, providing a self-contained portable thermal observation system.
Key Features
- 640 × 512 Thermal Resolution – High-resolution thermal detector for detailed heat-signature observation.
- 12 μm Pixel Pitch – Supports detailed thermal imaging in a compact detector architecture.
- Uncooled Infrared Detector – Provides thermal observation without a cryogenic cooling system.
- 8–14 μm Spectral Response – Long-wave infrared detection range.
- NETD ≤60 mK – Thermal sensitivity for distinguishing temperature differences within a scene.
- Approximately 25 Hz Refresh Rate – Provides smooth handheld thermal observation.
- 3.5-Inch Colour TFT Display – Large integrated screen for convenient viewing.
- 640 × 480 Display Resolution – Clear visual presentation of thermal images.
- Five Thermal Colour Palettes – White Hot, Black Hot, Iron Red, Rainbow and Cool Colour.
- Multi-Scale Detail Enhancement – Digital processing for improved thermal scene presentation.
- Automatic Shutter Correction – Maintains consistent thermal image quality.
- Photo Capture – Records thermal images directly from the device.
- JPG Image Format – Standard image format for captured thermal photos.
- 8GB Built-In Storage – Integrated storage for recorded thermal images.
- Rechargeable 26650 Lithium Battery – Built-in portable power system.
- Compact Handheld Design – Designed for portable thermal observation.
- 0°C to 45°C Operating Range – Defined operating-temperature range.
- OEM / ODM / OBM Support – Commercial customization options available.
- Software Customization – Supports software and interface customization.
- One-Year Warranty – Product warranty included.
Product Specifications
Model: HT-D9
Product Type: Thermal Imaging Monocular
Thermal Detector Resolution: 640 × 512 Pixels
Pixel Pitch: 12 μm
Detector Type: Uncooled Infrared Focal-Plane Detector
Spectral Response: Approximately 8–14 μm
Thermal Sensitivity: NETD ≤60 mK
Refresh Rate: Approximately 25 Hz
Base Magnification: Approximately 2x
Display Type: 3.5-Inch Colour TFT
Display Resolution: 640 × 480 Pixels
Image Enhancement: Multi-Scale Detail Enhancement
Image Correction: Shutter-Based Correction
Thermal Palettes: White Hot / Black Hot / Iron Red / Rainbow / Cool Colour
Photo Capture: Supported
Photo Format: JPG
Internal Storage: 8GB
Battery: Built-In Rechargeable 26650 Lithium Battery
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 60°C
Weight: Approximately 556 g
Customization: OEM / ODM / OBM / Software Reengineering
Warranty: One Year
640 × 512 Thermal Imaging
The HT-D9 features a 640 × 512 thermal detector with 12 μm pixel pitch, providing substantially detailed thermal imaging for outdoor and inspection applications.
The high-resolution thermal sensor supports:
- Detailed heat-source observation
- Clear separation between nearby thermal objects
- Better image quality during digital enlargement
- Improved viewing of smaller heat sources
- Detailed observation of complex thermal environments
This makes the HT-D9 suitable for users who require greater thermal detail than lower-resolution handheld thermal viewers.
NETD ≤60 mK Thermal Sensitivity
The HT-D9 detector provides a thermal sensitivity rating of NETD ≤60 mK.
Thermal sensitivity determines the device's ability to distinguish small temperature differences between objects and their surroundings, supporting effective heat-source observation across varied environments.
Approximately 25 Hz Refresh Rate
The HT-D9 operates at approximately 25 Hz, providing smooth image presentation during handheld scanning and observation.
The refresh rate supports:
- Handheld thermal scanning
- Walking observation
- Moving-subject tracking
- Equipment inspection
- Outdoor monitoring
3.5-Inch Colour TFT Display

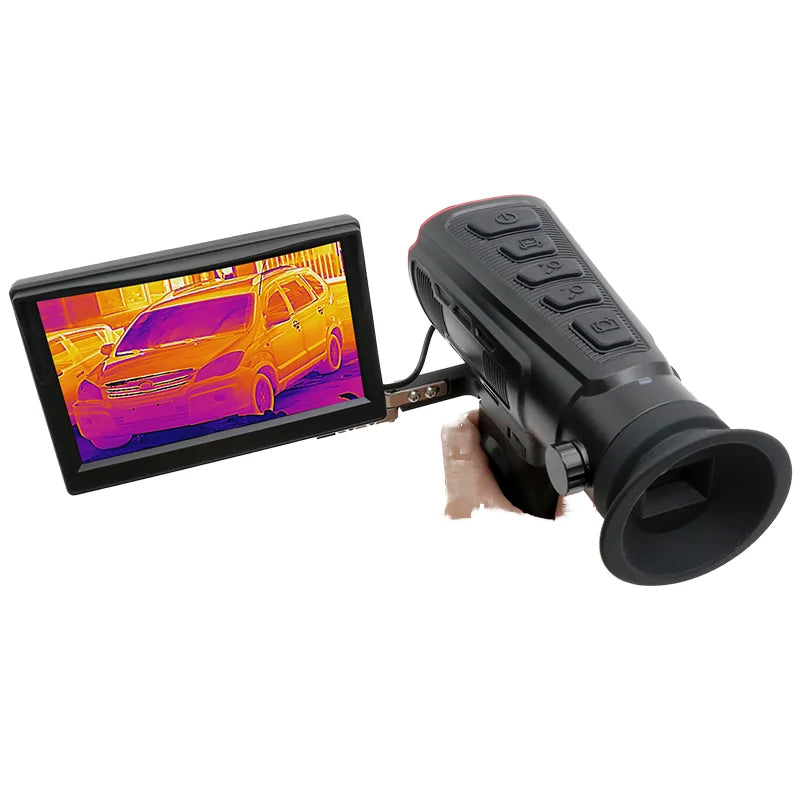

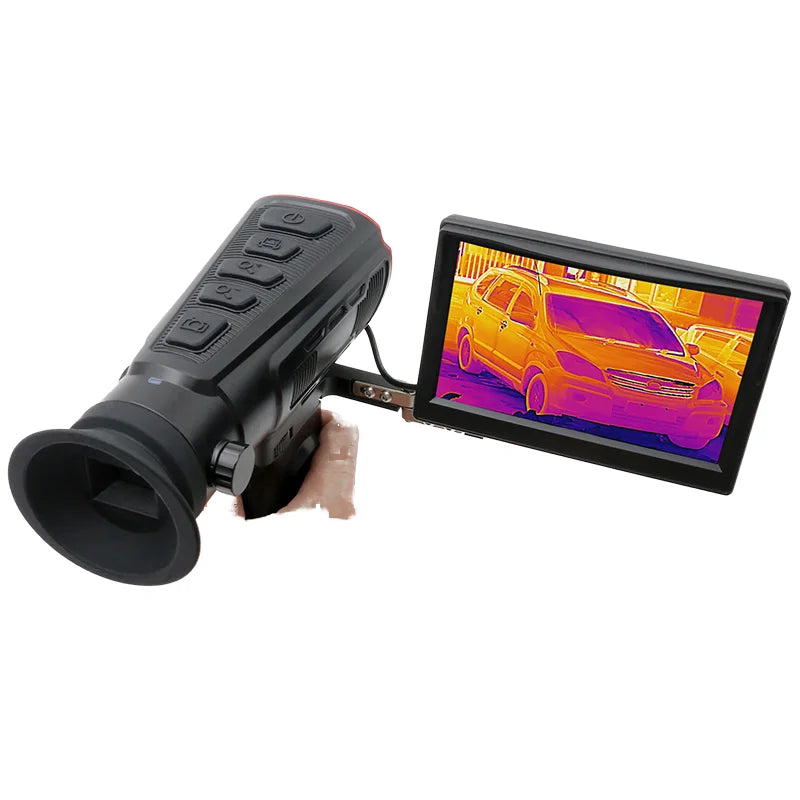

Thermal imagery is presented through a 3.5-inch colour TFT display with 640 × 480 resolution.
The large integrated display provides a convenient viewing interface for inspecting thermal scenes, navigating settings and reviewing captured images.
Five Thermal Colour Palettes
The HT-D9 includes five thermal imaging palettes:
- White Hot
- Black Hot
- Iron Red
- Rainbow
- Cool Colour
Multiple palettes allow different temperature patterns and heat sources to be displayed using different visual representations.
Multi-Scale Detail Enhancement
Integrated multi-scale detail enhancement processes thermal imagery to improve the presentation of important scene details.
The processing system supports improved:
- Edge visibility
- Local contrast
- Small heat-source presentation
- Background separation
- Overall thermal scene detail
Automatic Shutter Correction
The HT-D9 incorporates shutter-based image correction, helping compensate for detector non-uniformity and maintain consistent thermal image quality during operation.
This calibration technology supports stable image presentation during extended thermal observation.
Thermal Image Capture
The HT-D9 supports direct thermal image capture, allowing users to record important thermal observations for later viewing or documentation.
Captured photographs are stored in JPG format, providing compatibility with commonly used computers and mobile devices.
8GB Built-In Storage
The monocular includes 8GB of integrated storage, allowing captured thermal images to be saved directly to the device without requiring separate storage media for standard operation.
Rechargeable 26650 Lithium Battery
The HT-D9 uses a built-in rechargeable 26650 lithium battery, providing portable power for handheld thermal observation.
The rechargeable design eliminates the need for continuous external power during normal portable operation.
Operating Temperature
The HT-D9 is specified for operation between:
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 60°C
These temperature specifications provide clearly defined operating and storage conditions for the thermal imaging system.
Compact Handheld Design
With a listed weight of approximately 556 g, the HT-D9 provides a portable handheld configuration suitable for field observation, inspection and thermal surveying.
Its compact form factor makes it convenient for carrying during outdoor observation and professional inspection work.
Suitable Applications
The HT-D9 Thermal Imaging Monocular is designed for:
- Wildlife observation
- Farm monitoring
- Property inspection
- Night-time outdoor observation
- Electrical inspection
- Machinery maintenance
- Building heat-loss checks
- Search support
- Security patrols
- General thermal surveying
Customization Options
The HT-D9 supports commercial customization including:
- Brand logo
- Housing finish
- Firmware
- Menu language
- Packaging
- Storage configuration
- Accessories
- User-interface functions
- Software integration
Warranty
The HT-D9 includes a one-year warranty.
Important Use Information
Avoid pointing the thermal detector directly at the sun, welding arcs, lasers or other intense energy sources, as these can damage the thermal sensor.
Keep the lens clean and dry, protect the monocular during transportation and store it within its specified temperature range.
