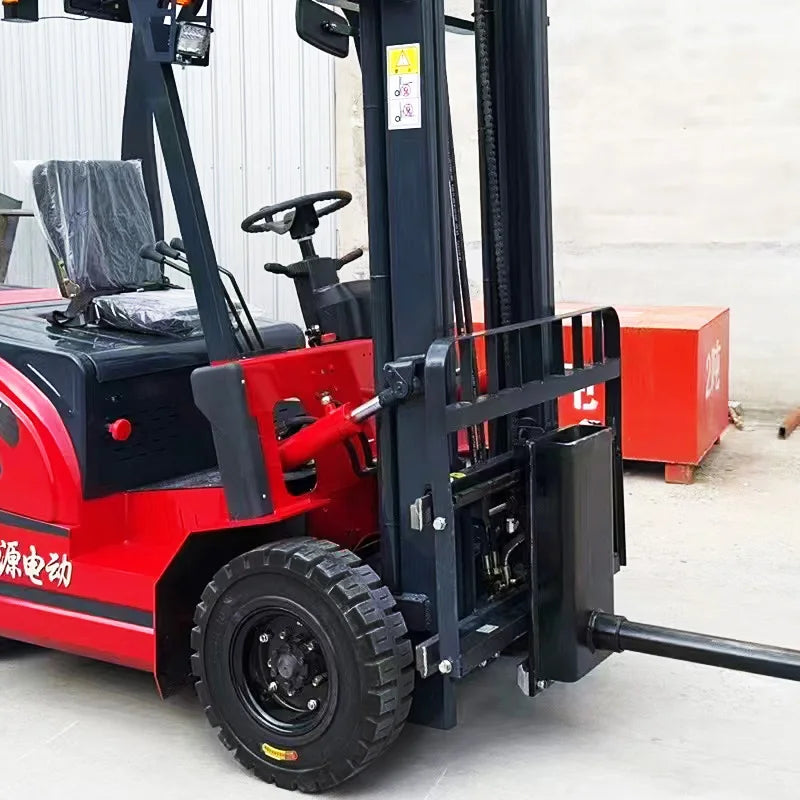

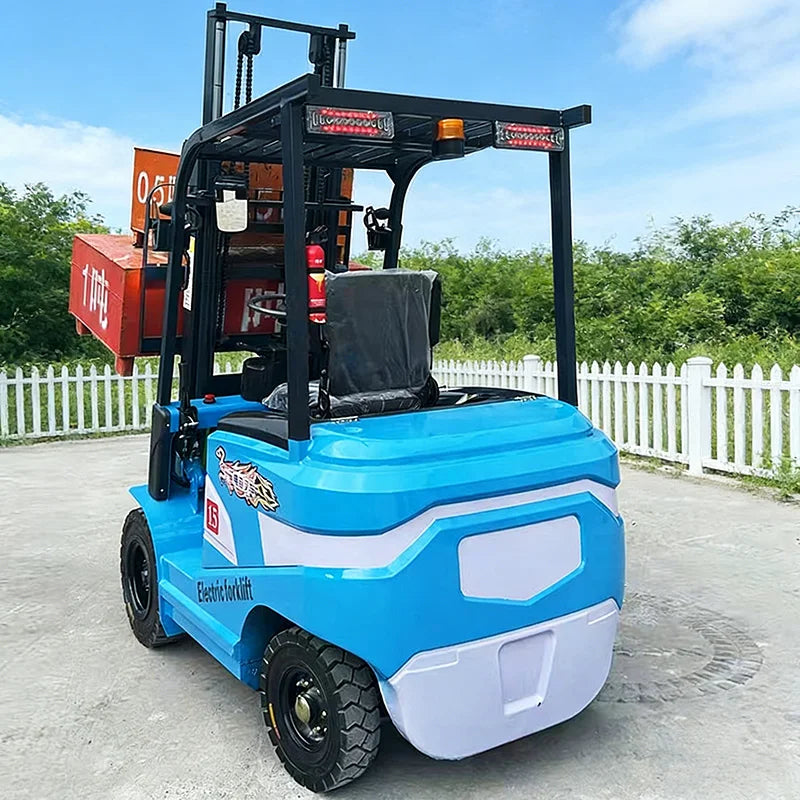

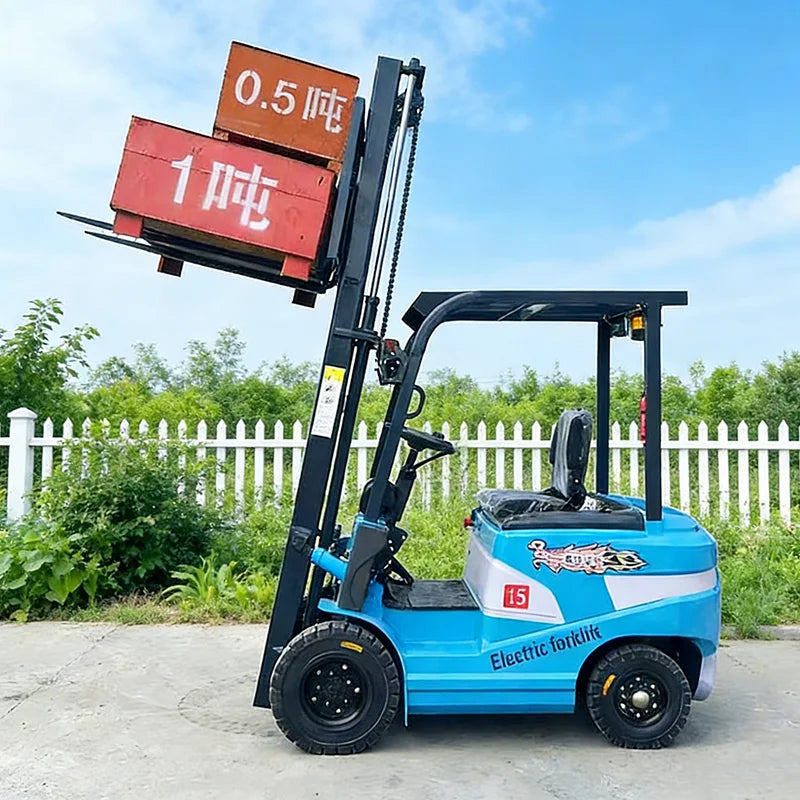

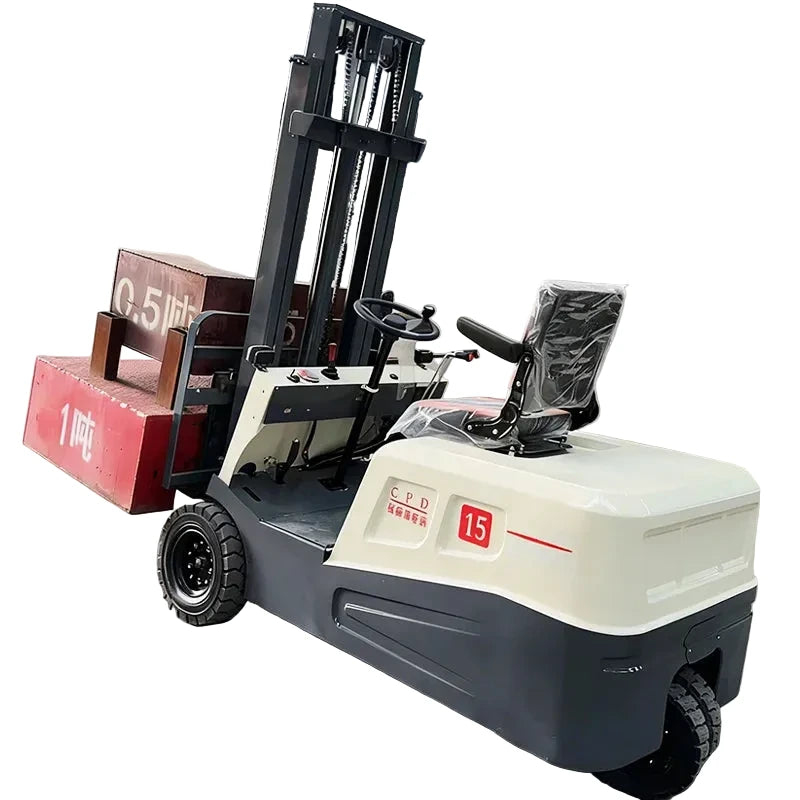

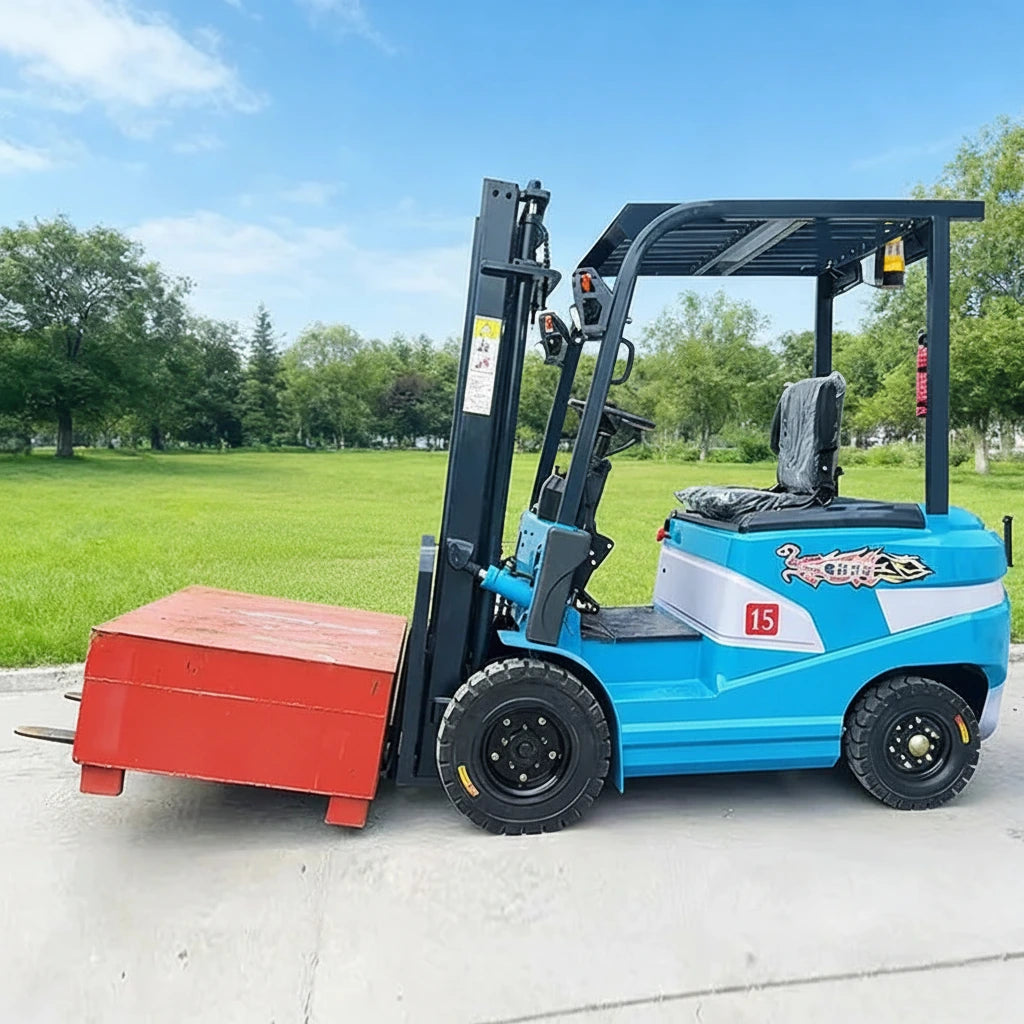

Improve pallet movement, warehouse stacking, loading, and material transport with the TN-1.5E Three-Wheel Electric Forklift. Designed for seated operation, this compact electric forklift provides a 1,500 kg lifting capacity and 3,000 mm lifting height, making it suitable for warehouses, workshops, distribution facilities, manufacturing operations, and other material-handling environments.

The three-wheel design and hydraulic power steering provide excellent manoeuvrability in confined working areas, while the 60V electric system and 3,000W brushless AC travel motor deliver efficient, low-noise operation without direct exhaust emissions during use.

Key Features

• 1,500 kg rated lifting capacity
• 3,000 mm lifting height
• Three-wheel compact forklift design
• Seated operator configuration
• 60V electric power system
• 60V / 70Ah battery system
• 3,000W brushless AC travel motor
• Hydraulic power steering
• 4-hour continuous working time
• 6–8 hour charging time
• Reinforced one-piece steel body
• Low-centre-of-gravity construction
• 12° maximum gradeability
• Headlights and turn signals
• Brake lights and instrument lighting
• Electric horn
• Compact dimensions for confined work areas
• Custom body colour available

Product Specifications

• Model: TN-1.5E
• Product Type: Three-Wheel Electric Forklift
• Condition: New
• Operating Mode: Seated
• Rated Lifting Capacity: 1,500 kg
• Lifting Height: 3,000 mm
• Power Source: Rechargeable Electric Battery
• System Voltage: 60V
• Battery Capacity: 70Ah
• Battery Configuration: 5 Battery Units
• Travel Motor: 3,000W Brushless AC Motor
• Charging Time: 6–8 Hours
• Continuous Working Time: 4 Hours
• Steering System: Hydraulic Power Steering
• Gradeability: 12°
• Body Construction: Thickened One-Piece Stamped Steel
• Overall Dimensions Without Forks: 2,150 × 1,200 × 2,150 mm
• Overall Length With Forks: 3,220 mm
• Vehicle Weight: 2,100 kg
• Lighting: Headlights, Turn Signals, Brake Lights & Instrument Lights
• Horn: Electric Horn
• Terrain Suitability: Indoor Industrial Floors & Smooth Outdoor Surfaces
• Colour: Customizable

1,500 kg Lifting Capacity

The TN-1.5E provides a 1.5-ton lifting capacity, making it suitable for palletized goods, packaged products, manufacturing materials, warehouse inventory, equipment, and other commercial loads.

Its compact counterbalance construction combines load-handling capability with manoeuvrability for operations where working space is limited.

60V Electric Power System

The forklift operates on a 60V / 70Ah rechargeable battery system paired with a 3,000W brushless AC travel motor.

The electric drivetrain provides:

• Quiet operating performance
• No direct exhaust emissions during use
• Smooth low-speed movement
• Reduced engine-related maintenance
• Convenient warehouse operation
• Efficient stop-and-start material handling

The forklift provides 4 hours of continuous working time with a 6–8 hour charging time.

Three-Wheel Compact Design

The three-wheel configuration is designed to provide enhanced manoeuvrability in compact industrial environments.

This configuration is particularly useful for:

• Narrow warehouse aisles
• Compact storage facilities
• Retail stockrooms
• Production areas
• Workshops
• Loading zones
• Small distribution centres

The compact chassis makes positioning and turning easier where space is restricted.

Hydraulic Power Steering

The hydraulic power-steering system reduces steering effort and provides responsive control during repeated pallet movement and warehouse operations.

It supports precise manoeuvring when:

• Entering storage aisles
• Aligning with pallets
• Positioning loads
• Approaching loading areas
• Working around warehouse equipment

Reinforced Steel Construction

The TN-1.5E features a thickened one-piece stamped steel body designed for regular commercial and industrial use.

The reinforced construction provides a stable platform for lifting and transporting loads while protecting key internal electrical and hydraulic components.

Lighting and Operator Equipment

Integrated operating and safety equipment includes:

• Front headlights
• Left and right turn signals
• Brake lights
• Instrument-panel lighting
• Electric horn
• Battery status instrumentation
• Seated operator controls

These features support visibility and communication during warehouse and industrial operations.

Dimensions and Manoeuvrability

The compact forklift measures:

• Length Without Forks: 2,150 mm
• Length With Forks: 3,220 mm
• Width: 1,200 mm
• Height: 2,150 mm
• Vehicle Weight: 2,100 kg

Its compact dimensions make the TN-1.5E suitable for material-handling environments where conventional larger forklifts require additional operating space.

12° Gradeability

The electric drive system provides a 12° maximum gradeability, supporting operation across suitable industrial ramps and inclined surfaces within the forklift's operating specifications.

Suitable Applications

The TN-1.5E is suitable for:

• Warehouses
• Distribution centres
• Manufacturing facilities
• Retail stockrooms
• Workshops
• Loading bays
• Building-material facilities
• Food and beverage facilities
• Agricultural storage facilities
• Hotels and commercial facilities
• Small logistics operations
• Indoor industrial transport
• Smooth paved working areas

Customization Options

Available configurations include:

• Body colour
• Company logo
• Battery configuration
• Battery capacity
• Mast configuration
• Lift height
• Fork dimensions
• Tyre configuration
• Warning lights
• Mirrors
• Operator protection equipment
• Charger configuration

Safety Information

Only trained and authorized operators should operate the forklift. Do not exceed the 1,500 kg rated lifting capacity stated on the machine capacity plate.

Keep loads lowered while travelling and avoid sudden turns, unstable surfaces, and slopes exceeding the machine's operating limits. Inspect the battery, forks, mast, lift chains, hydraulic system, tyres, steering, brakes, lighting, and warning equipment before operation.
