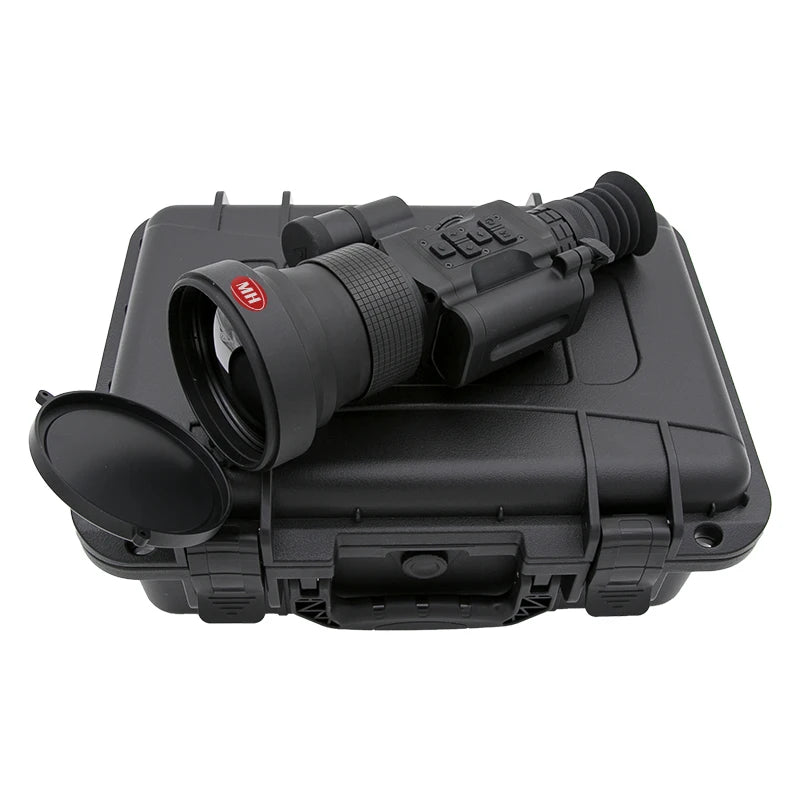

MH-T675 Thermal Imaging Monocular – 384×288 / 640×512 OLED Wi-Fi Thermal Viewer
MH-T675 Thermal Imaging Monocular – 384×288 / 640×512 OLED Wi-Fi Thermal Viewer
In stock
Have a question?
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /09/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Observe heat signatures in darkness, low-light conditions, fog, smoke, and challenging outdoor environments with the MH-T675 Thermal Imaging Monocular. Available with 384 × 288 or 640 × 512 thermal sensor options, this portable thermal viewer combines a high-resolution OLED display, multiple lens configurations, digital zoom, Wi-Fi connectivity, photo and video recording, and multiple thermal viewing modes.
The MH-T675 can be configured with 35 mm, 50 mm, or 75 mm F1.0 objective lenses, allowing customers to select a configuration suited to their preferred field of view and observation distance.
Key Features
- 384 × 288 or 640 × 512 thermal sensor options
- 12 μm pixel pitch
- 1024 × 768 OLED display
- 35 mm, 50 mm, or 75 mm F1.0 objective lens options
- 1x, 2x, and 4x electronic zoom
- Wi-Fi image transmission
- Photo and video recording
- White Hot, Black Hot, Red Hot, False Colour, and Outline thermal modes
- Optional laser rangefinder with up to approximately 1,300 m listed ranging distance
- Multiple digital reticle options
- IP67 weather-protection configuration
- Up to approximately 8 hours listed operating time
- Operating-temperature range of approximately -40°C to 55°C
- One-year warranty
Product Specifications
- Model: MH-T675
- Product Series: MH-T Series
- Product Type: Thermal Imaging Monocular
- Thermal Resolution Options: 384 × 288 / 640 × 512 pixels
- Pixel Pitch: 12 μm
- Display Type: OLED
- Display Resolution: 1024 × 768 pixels
- Objective Lens Options: 35 mm / 50 mm / 75 mm
- Lens Aperture: F1.0
- Electronic Zoom: 1x / 2x / 4x
- Wi-Fi: Supported
- Photo Recording: Supported
- Video Recording: Supported
- Digital Reticles: Supported
- Thermal Palettes: White Hot, Black Hot, Red Hot, False Colour and Outline Mode
- Laser Rangefinder: Optional
- Maximum Listed Ranging Distance: Approximately 1,300 m
- Protection Rating: IP67 configuration
- Operating Temperature: Approximately -40°C to 55°C
- Operating Time: Up to approximately 8 hours
- Dimensions: Approximately 255 × 116 × 102 mm
- Weight: Approximately 1.2 kg
- Warranty: 1 Year
Thermal Sensor Options
384 × 288 Thermal Sensor
The 384 × 288 configuration provides a practical option for general thermal observation, outdoor monitoring, property inspection, and heat-source detection.
640 × 512 Thermal Sensor
The higher-resolution 640 × 512 configuration provides increased native image detail and supports clearer viewing of smaller heat sources and improved image quality when using digital magnification.
35 mm, 50 mm & 75 mm Lens Options
Choose from three F1.0 objective lens configurations:
- 35 mm F1.0: Wider viewing area suited to broader-area scanning and closer observation.
- 50 mm F1.0: Balanced configuration for field of view and observation distance.
- 75 mm F1.0: Narrower field of view with increased apparent subject size for longer-distance observation.
1024 × 768 OLED Display
The integrated 1024 × 768 OLED display provides a high-resolution viewing interface for thermal imagery, menus, and device settings.
OLED technology supports high contrast and clear thermal-image presentation during low-light and nighttime observation.
Electronic Zoom
The MH-T675 provides three electronic magnification settings:
- 1x
- 2x
- 4x
These settings allow users to enlarge selected areas of the displayed thermal image during observation.
Optional Laser Rangefinder
Selected MH-T675 configurations can be equipped with an integrated laser rangefinder, with a listed maximum ranging distance of approximately 1,300 metres.
The rangefinder-equipped version should be selected separately from the standard configuration when ordering.

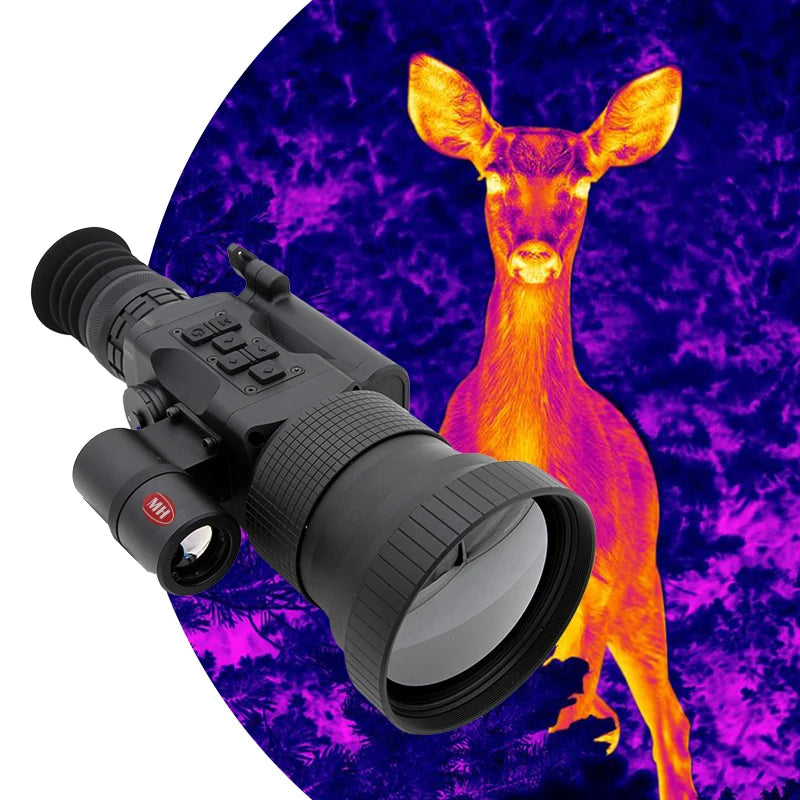

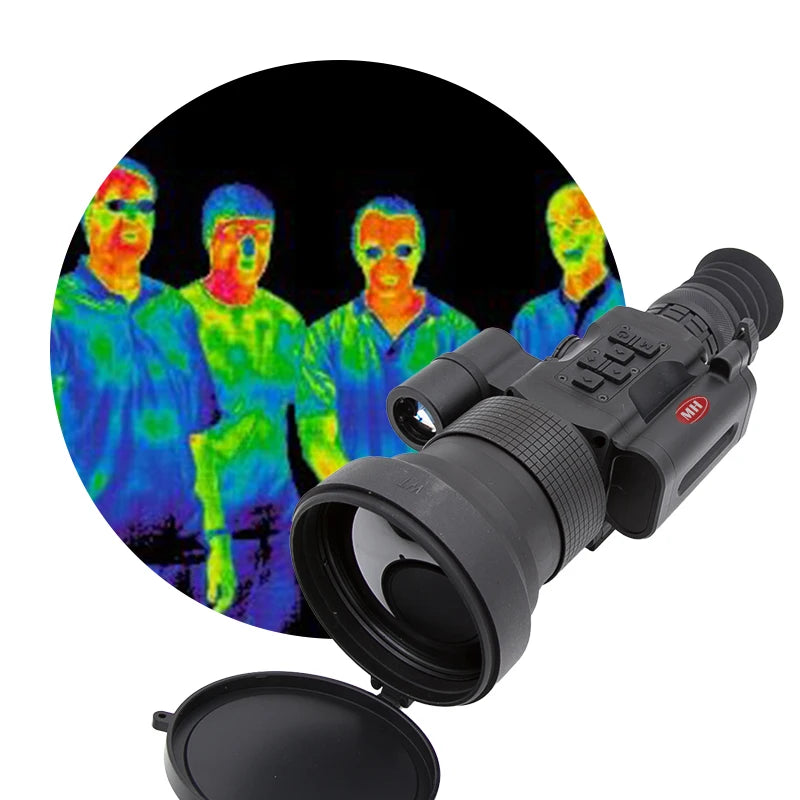

Thermal Colour Modes
Multiple thermal viewing palettes allow the displayed image to be adapted to different observation conditions.
Available modes include:
- White Hot
- Black Hot
- Red Hot
- False Colour
- Outline Mode
Wi-Fi Connectivity
Built-in Wi-Fi connectivity supports wireless communication with compatible mobile devices.
Depending on the compatible software configuration, Wi-Fi functionality can support image transmission and connected-device operation.
Photo & Video Recording
The MH-T675 supports both still-image capture and video recording, allowing thermal observations to be saved for later viewing and documentation.
Weather-Resistant Construction
The selected configuration is listed with IP67 environmental protection, providing a dust-tight enclosure and resistance to temporary water exposure under the applicable IP test conditions.
Battery Operation
The MH-T675 provides a listed operating duration of up to approximately 8 hours, supporting extended portable use during outdoor observation and inspection activities.
Suitable Applications
The MH-T675 Thermal Imaging Monocular is suitable for applications including:
- Wildlife observation
- Farm and livestock monitoring
- Search and rescue support
- Property inspection
- Building inspection
- Industrial maintenance
- Security patrols
- Nighttime outdoor observation
- Heat-source detection
- Long-distance thermal monitoring
Customization Options
Available configurations can include different:
- Thermal sensor resolutions
- Objective lenses
- Laser rangefinder options
- Firmware configurations
- Menu languages
- Image palettes
- Housing finishes
- Packaging
- Branding options
Important Use Information
Avoid pointing the thermal detector directly at the sun, lasers, welding arcs, or other intense energy sources that could damage the sensor.
Keep the lens clean and dry and protect the device during transport and storage. Use the product according to the manufacturer's instructions and applicable local regulations.
