384×288 Dual-Sensor Thermal & Digital Night Vision Monocular – 19mm Lens
384×288 Dual-Sensor Thermal & Digital Night Vision Monocular – 19mm Lens
In stock
Have a question?
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /09/2026
Couldn't load pickup availability
Guaranteed Safe Checkout

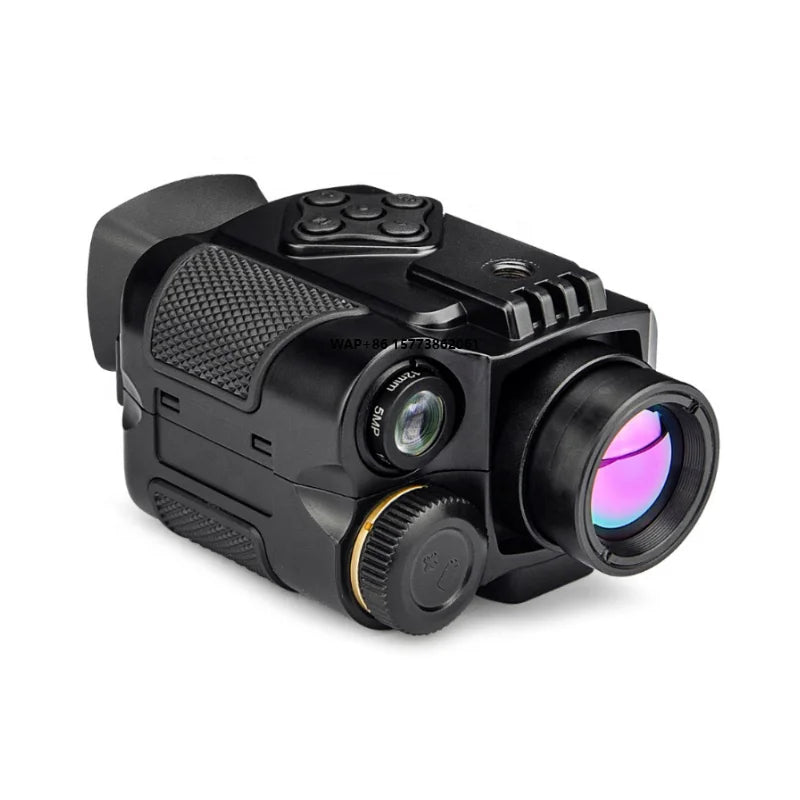

The Dual-Sensor Thermal & Digital Night Vision Monocular combines thermal imaging and low-light digital imaging in a compact handheld device designed for outdoor observation, wildlife monitoring, property inspection, farm monitoring, search support and general night-time viewing.
The thermal imaging system features a 384 × 288 uncooled vanadium oxide detector with a 17 μm pixel pitch, NETD ≤50 mK, a 19 mm germanium objective lens and a 25 Hz refresh rate. A separate 640 × 480 ultra-sensitive CMOS camera with a 12 mm lens provides digital low-light observation alongside the thermal channel.
Both imaging systems support 1x base magnification and digital zoom up to 5x. The monocular also features nine thermal colour palettes, photo and video recording, playback, 8GB TF storage, a 640 × 480 LCOS display and video output.
With compact dimensions of approximately 102 × 76 × 49 mm, a lightweight 206 g body, rechargeable lithium power and IPX4 splash resistance, the device provides a portable dual-imaging solution for field and outdoor observation.
Key Features
- Dual-Sensor Imaging – Combines thermal and digital low-light observation.
- 384 × 288 Thermal Resolution – Detailed thermal imaging for heat-signature detection.
- Uncooled Vanadium Oxide Detector – Dedicated thermal imaging sensor.
- 17 μm Pixel Pitch – Thermal detector architecture optimized for detailed imaging.
- NETD ≤50 mK – Sensitive thermal detection for temperature differentiation.
- 19 mm Germanium Thermal Lens – Dedicated infrared objective for thermal observation.
- 25 Hz Refresh Rate – Smooth thermal image presentation during handheld scanning.
- 640 × 480 CMOS Camera – Separate ultra-sensitive digital low-light imaging channel.
- 12 mm Low-Light Lens – Dedicated fixed-focus lens for the CMOS imaging system.
- 1x Base Magnification – Natural-scale viewing configuration.
- Up to 5x Digital Zoom – Image enlargement across both imaging channels.
- Nine Thermal Colour Palettes – Multiple thermal visualization modes.
- 640 × 480 LCOS Display – Integrated display for thermal and digital viewing.
- Photo & Video Recording – Captures observations directly through the device.
- Playback Function – Review recorded images and videos directly through the system.
- 8GB TF Storage – Integrated removable storage for captured media.
- Video Output – Supports external video connection.
- IPX4 Splash Resistance – Protection against water splashes during outdoor operation.
- Rechargeable 14500 Lithium Battery – Compact rechargeable power system.
- 1/4-20 Mounting Thread – Standard mounting interface for compatible equipment.
- 206 g Lightweight Design – Compact construction for portable field use.
Product Specifications
Product Type: Dual-Sensor Thermal & Digital Night Vision Monocular
Imaging Systems: Thermal + Low-Light Digital
Thermal Detector Type: Uncooled Vanadium Oxide Focal Plane Array
Thermal Resolution: 384 × 288 Pixels
Thermal Pixel Pitch: 17 × 17 μm
Spectral Range: 8–14 μm
Thermal Sensitivity: NETD ≤50 mK at 300K
Thermal Refresh Rate: 25 Hz
Thermal Objective Lens: 19 mm
Thermal Lens Material: Germanium
Thermal Base Magnification: 1x
Thermal Digital Zoom: Up to 5x
Thermal Human Detection Range: Approximately 3–200 m
Low-Light Sensor: Ultra-Sensitive CMOS
Low-Light Resolution: 640 × 480 Pixels
Low-Light Objective Lens: 12 mm
Low-Light Focus: Fixed Focus
Low-Light Base Magnification: 1x
Low-Light Digital Zoom: Up to 5x
Minimum Low-Light Focus Distance: Approximately 0.2 m
Field of View: Approximately 14.5° × 11°
Display Type: LCOS
Display Resolution: 640 × 480 Pixels
Diopter Adjustment: Approximately ±5
Brightness Levels: 3
Thermal Colour Palettes: 9
Photo Capture: Supported
Video Recording: Supported
Playback: Supported
File Deletion: Supported
Storage: 8GB TF Card
Video Output: Supported
USB Interface: Mini USB
Tripod/Mount Thread: 1/4-20
Protection Rating: IPX4
Battery Type: Rechargeable 14500 Lithium Battery
Battery Voltage: 3.7V
Battery Capacity: 750mAh
Charging Input: 5V / 2A
Operating Voltage: Approximately 3.4–4.2V
Operating Temperature: Approximately -20°C to 50°C
Operating Humidity: Below 70%
Dimensions: Approximately 102 × 76 × 49 mm
Weight: Approximately 206 g
Dual-Sensor Thermal & Low-Light Imaging
The monocular incorporates two dedicated imaging systems within one compact device.
The thermal channel detects infrared energy emitted by people, animals, equipment and surrounding objects, allowing heat signatures to be observed without visible illumination.
The separate digital low-light channel uses an ultra-sensitive CMOS sensor to capture visible scene information in low-light environments.
Together, the two imaging systems provide users with thermal heat detection and conventional scene observation from a single portable device.
384 × 288 Vanadium Oxide Thermal Detector
The thermal channel uses an uncooled 384 × 288 vanadium oxide focal-plane detector with a 17 μm pixel pitch.
The detector operates across an 8–14 μm spectral range, providing long-wave infrared imaging for:
- Heat-source detection
- Night-time thermal observation
- Wildlife monitoring
- Property inspection
- Farm monitoring
- Equipment inspection
- Outdoor thermal scanning
NETD ≤50 mK Thermal Sensitivity
The thermal detector provides a specified NETD of ≤50 mK at 300K.
This thermal sensitivity enables the imaging system to distinguish temperature differences within a scene and produce useful thermal contrast between warmer and cooler objects.

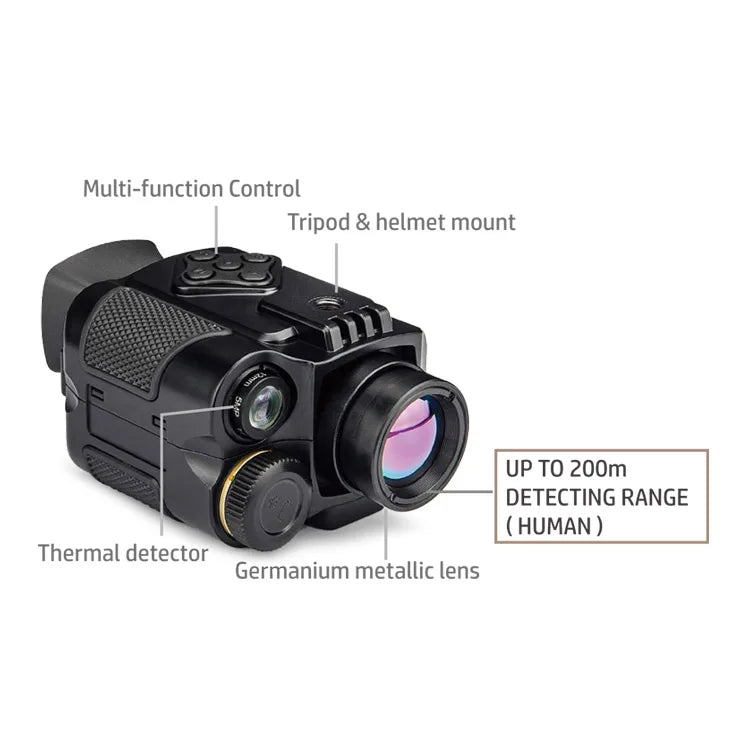

19 mm Germanium Thermal Lens
The thermal channel features a 19 mm germanium objective lens specifically designed for transmitting long-wave infrared energy to the thermal detector.
Combined with the 384 × 288 detector, the lens provides a practical viewing configuration for short- to medium-range thermal observation and broad-area scanning.
640 × 480 Low-Light CMOS Camera
A separate 640 × 480 ultra-sensitive CMOS sensor provides the monocular's digital low-light imaging capability.
The low-light channel uses a 12 mm fixed-focus objective lens and provides a minimum focusing distance of approximately 0.2 metres.
This imaging channel provides conventional scene information that complements the heat signatures displayed by the thermal sensor.
1x to 5x Digital Viewing
Both imaging channels provide 1x base magnification with digital enlargement up to 5x.
The adjustable digital zoom allows users to enlarge selected areas of the displayed thermal or low-light image during observation.
25 Hz Thermal Refresh Rate
The thermal imaging system operates at 25 Hz, providing responsive image presentation during handheld scanning and observation.
The refresh rate supports comfortable viewing when scanning outdoor environments or following movement within the thermal scene.

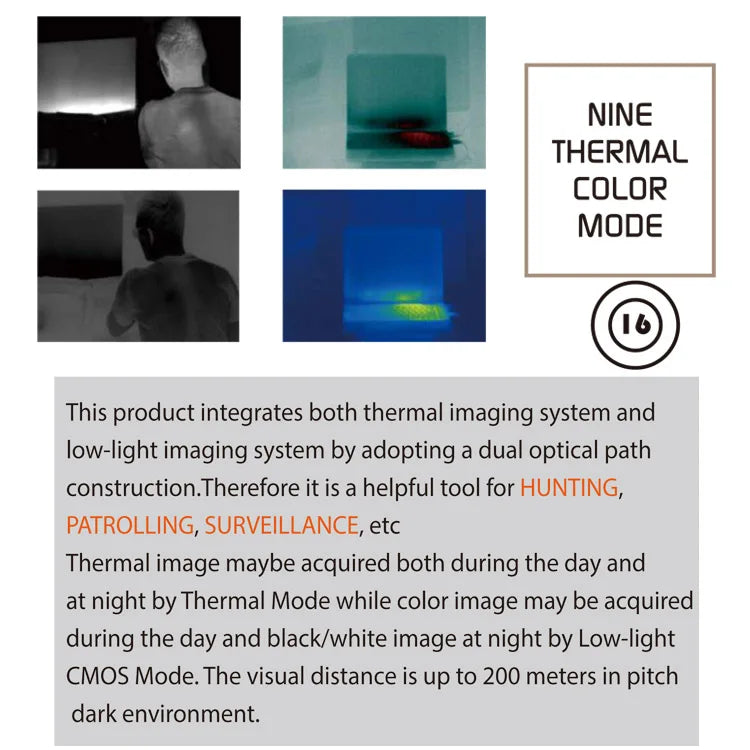

Nine Thermal Colour Palettes
The monocular provides nine selectable thermal colour palettes, allowing heat signatures and temperature differences to be presented using multiple visual modes.
The different palette options provide flexibility for changing environments, backgrounds and observation requirements.
640 × 480 LCOS Display
Thermal and digital imagery is presented through an integrated 640 × 480 LCOS display.

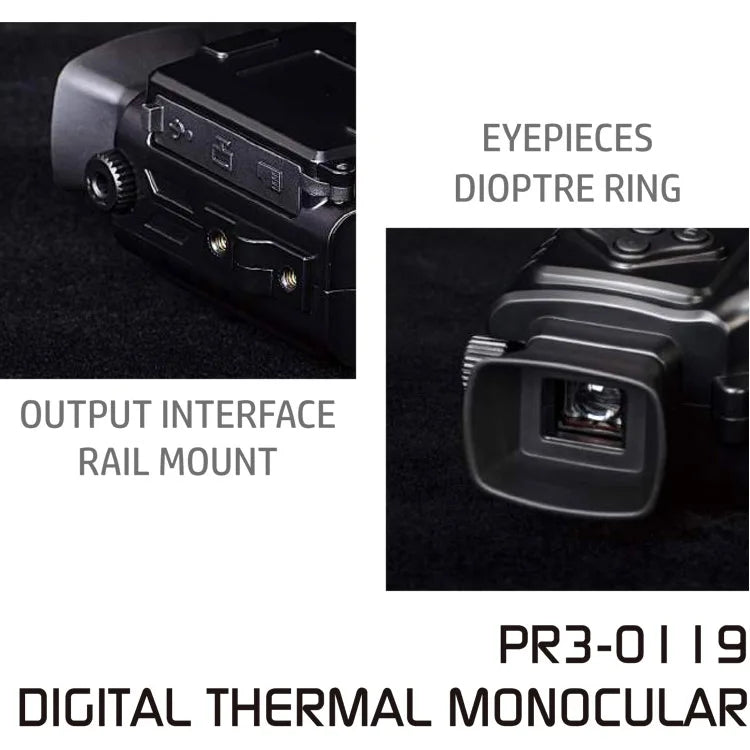

The viewing system also provides approximately ±5 diopter adjustment, three brightness levels and menu-controlled brightness and contrast adjustment for comfortable viewing.
Photo & Video Recording
Integrated digital recording provides:
- Still-image capture
- Video recording
- File playback
- File deletion
- Date and time settings
These functions allow important thermal and low-light observations to be recorded and reviewed directly through the device.
8GB TF Card Storage
The monocular uses an 8GB TF storage card for recorded photographs and videos.
The removable storage format provides convenient management and transfer of captured media.
Rechargeable Lithium Battery
Power is supplied by a 3.7V 750mAh rechargeable 14500 lithium battery.
The electrical system operates at approximately 3.4–4.2V and supports a 5V/2A charging input, providing a compact rechargeable power solution for portable observation.
IPX4 Splash Resistance
The device carries an IPX4 protection rating, providing resistance against water splashes from different directions under the applicable IPX4 test conditions.
This protection supports outdoor operation while maintaining the monocular's lightweight and compact construction.
Compact 206 g Design
The monocular measures approximately:
Length: 102 mm
Width: 76 mm
Height: 49 mm
Weight: 206 g
Its lightweight construction makes it practical for handheld observation, equipment bags and portable field use.

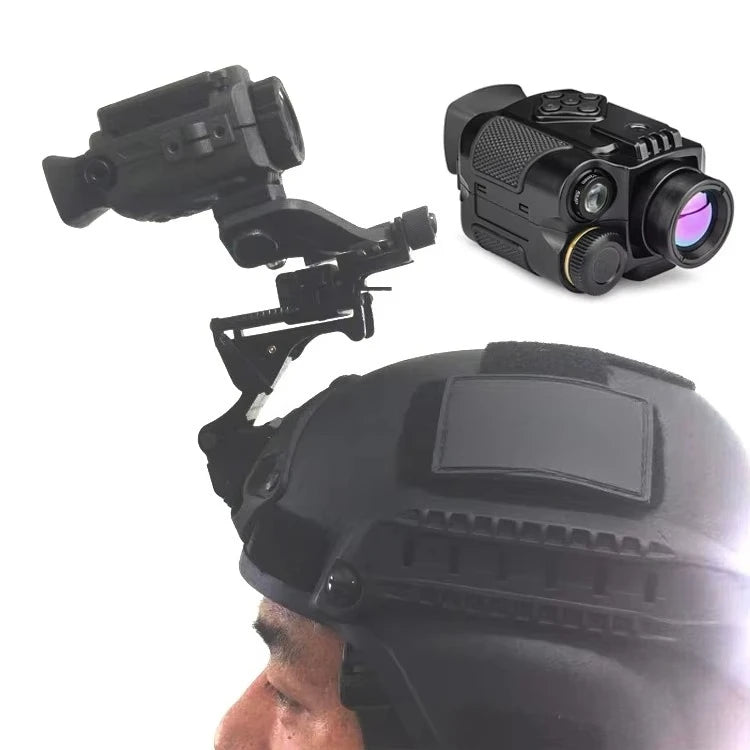

1/4-20 Mounting Interface
A standard 1/4-20 mounting thread provides compatibility with suitable tripods, mounting adapters and observation equipment using the same thread specification.
Suitable Applications
The Dual-Sensor Thermal & Digital Night Vision Monocular is designed for:
- Wildlife observation
- Farm monitoring
- Property inspection
- Outdoor night-time viewing
- Search support
- Security patrols
- Machinery inspection
- Electrical inspection
- Camping and outdoor exploration
- Heat-source detection
- General thermal observation
Safety & Care
Avoid pointing either imaging sensor directly at the sun, lasers, welding arcs or other intense energy sources, as these can damage sensitive imaging components.
Keep the thermal and digital lenses clean and dry, close protective covers during outdoor operation and store the monocular securely when not in use.
