Thermion 2 XG50 640×480 Thermal Imaging Optic
Thermion 2 XG50 640×480 Thermal Imaging Optic
In stock
Have a question?
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /09/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Observe heat signatures in darkness, low light, fog, and challenging outdoor conditions with the Thermion 2 XG50 Thermal Imaging Optic. The listed configuration combines a 640 × 480 thermal sensor, 12 μm pixel pitch, 50 mm F1.0 germanium objective lens, high-resolution AMOLED display, digital recording, and wireless connectivity in a durable thermal imaging platform.
With approximately 3× base magnification and digital magnification up to 24×, the device provides flexible viewing for both wider observation and closer examination of distant heat signatures.
Key Features
- 640 × 480 thermal sensor resolution
- 12 μm pixel pitch
- NETD below 40 mK
- 50 mm F1.0 germanium objective lens
- Approximately 3× base magnification
- Digital magnification up to 24×
- 1024 × 768 AMOLED display
- Eight thermal colour palettes
- Built-in photo and video recording
- 16GB internal storage
- Wi-Fi connectivity
- iOS and Android mobile-device support
- Rechargeable battery system
- Up to approximately 9 hours listed operating time
- USB Type-C external power support
- IPX7 water resistance
These features reflect the detailed configuration supplied in the source material.
Product Specifications
- Model: Thermion 2 XG50
- Product Type: Thermal Imaging Optic
- Thermal Sensor Resolution: 640 × 480 Pixels
- Pixel Pitch: 12 μm
- Thermal Sensitivity: NETD Below 40 mK
- Objective Lens: 50 mm Germanium
- Lens Aperture: F1.0
- Base Magnification: Approximately 3×
- Maximum Digital Magnification: Approximately 24×
- Field of View: Approximately 8.8° × 6.6°
- Linear Field of View: Approximately 15.4 × 11.5 m at 100 m
- Display Type: AMOLED
- Display Resolution: 1024 × 768 Pixels
- Thermal Palettes: 8 Modes
- Internal Storage: 16GB
- Video Format: MP4
- Image Format: JPG
- Wi-Fi: Supported
- Supported Mobile Platforms: iOS and Android
- Listed Detection Range: Up to Approximately 2,300 m
- Battery Type: Rechargeable
- Listed Runtime: Up to Approximately 9 Hours
- External Power: USB Type-C
- Water Resistance: IPX7
- Operating Temperature: Approximately -25°C to 50°C
- Housing Material: Metal
640 × 480 Thermal Imaging
The 640 × 480 thermal detector captures differences in infrared energy and converts them into a visible thermal image. Its 12 μm pixel pitch supports detailed heat-signature observation across a variety of lighting and environmental conditions.
The thermal imaging system can be useful for observation in:
- Complete darkness
- Low-light conditions
- Fog and mist
- Changing weather
- Low thermal-contrast environments
- Outdoor nighttime conditions

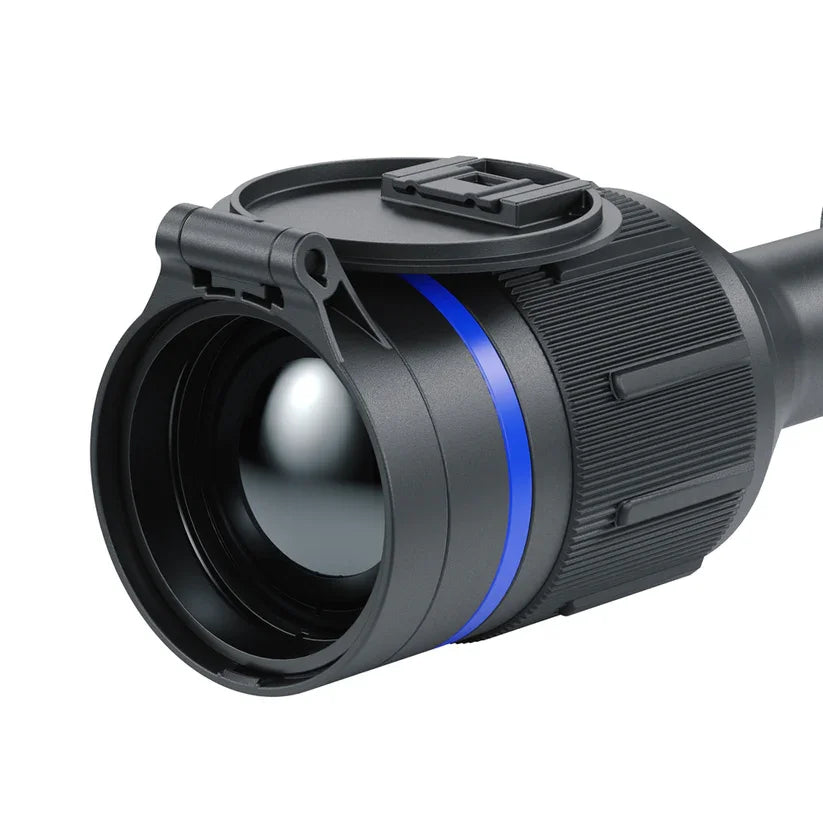

50 mm F1.0 Germanium Lens
The 50 mm F1.0 germanium objective lens is designed for medium- and long-distance thermal observation. The longer focal length provides a focused field of view while supporting greater apparent subject size when observing distant heat signatures.
Magnification
The listed optical configuration provides approximately:
- Base Magnification: 3×
- Maximum Digital Magnification: 24×
Digital magnification enlarges the displayed thermal image for closer examination of distant subjects. Higher digital magnification enlarges the sensor image rather than increasing its native 640 × 480 resolution.
1024 × 768 AMOLED Display
The internal 1024 × 768 AMOLED display provides a high-resolution viewing interface for thermal imagery, menus, settings, and recorded media.

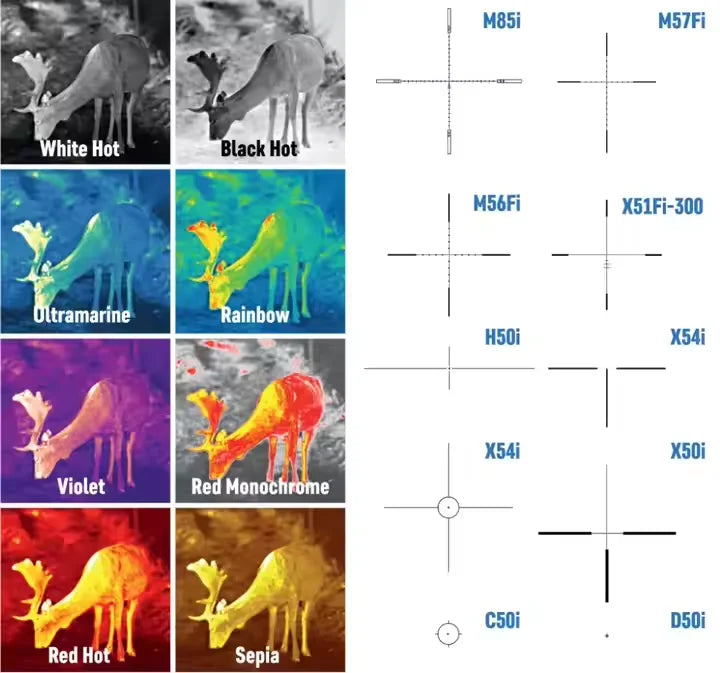

Eight Thermal Colour Palettes
The device is listed with eight thermal colour modes, allowing the displayed thermal image to be adapted to different observation conditions and viewing preferences.
Photo & Video Recording
Integrated recording functionality allows thermal observations to be captured directly on the device.
- Internal Storage: 16GB
- Video Format: MP4
- Image Format: JPG
- Photo Capture: Supported
- Video Recording: Supported
The built-in storage eliminates the need for a separate recording device during normal operation.

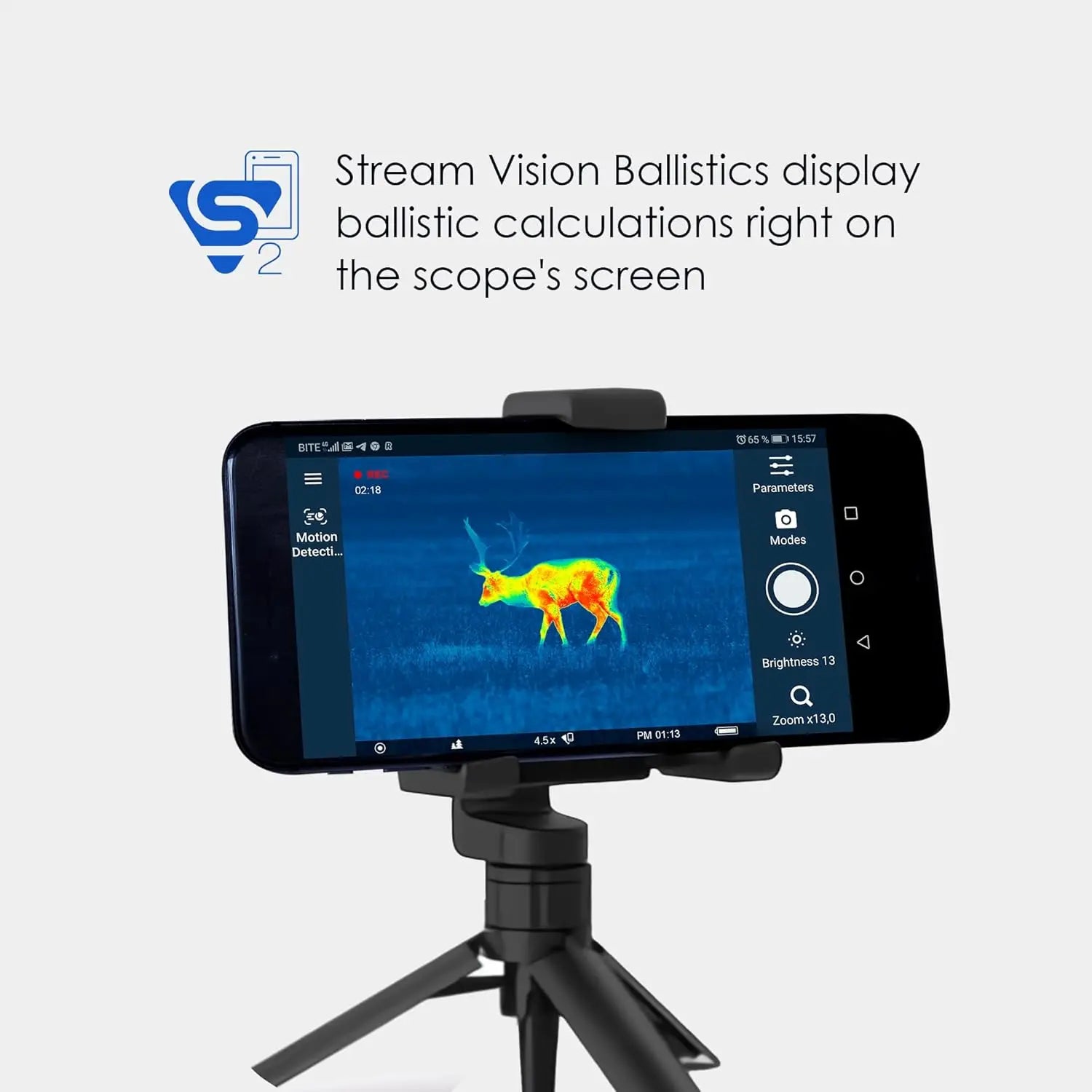

Wi-Fi Connectivity
Integrated Wi-Fi provides wireless connectivity with compatible mobile devices. Depending on the supplied software configuration, wireless functions can support live viewing, file transfer, device settings, and media management.
Rechargeable Battery
The rechargeable battery system provides up to approximately 9 hours of listed operation under selected operating conditions. USB Type-C external power support provides an additional power option for compatible external power sources.
IPX7 Water Resistance
The housing is listed with an IPX7 water-resistance rating, providing protection against temporary water exposure under the conditions defined by the IPX7 standard.
Operating Temperature
The listed operating-temperature range is approximately -25°C to 50°C, supporting operation across a broad range of outdoor environmental conditions.
Suitable Applications
The thermal imaging device can support lawful activities such as:
- Wildlife observation
- Farm and livestock monitoring
- Property inspection
- Search operations
- Nighttime outdoor observation
- Thermal surveying
- Industrial inspection
- Equipment monitoring
- General long-distance thermal observation
Description
Description
Observe heat signatures in darkness, low light, fog, and challenging outdoor conditions with the Thermion 2 XG50 Thermal Imaging Optic. The listed configuration combines a 640 × 480 thermal sensor, 12 μm pixel pitch, 50 mm F1.0 germanium objective lens, high-resolution AMOLED display, digital recording, and wireless connectivity in a durable thermal imaging platform.
With approximately 3× base magnification and digital magnification up to 24×, the device provides flexible viewing for both wider observation and closer examination of distant heat signatures.
Key Features
- 640 × 480 thermal sensor resolution
- 12 μm pixel pitch
- NETD below 40 mK
- 50 mm F1.0 germanium objective lens
- Approximately 3× base magnification
- Digital magnification up to 24×
- 1024 × 768 AMOLED display
- Eight thermal colour palettes
- Built-in photo and video recording
- 16GB internal storage
- Wi-Fi connectivity
- iOS and Android mobile-device support
- Rechargeable battery system
- Up to approximately 9 hours listed operating time
- USB Type-C external power support
- IPX7 water resistance
These features reflect the detailed configuration supplied in the source material.
Product Specifications
- Model: Thermion 2 XG50
- Product Type: Thermal Imaging Optic
- Thermal Sensor Resolution: 640 × 480 Pixels
- Pixel Pitch: 12 μm
- Thermal Sensitivity: NETD Below 40 mK
- Objective Lens: 50 mm Germanium
- Lens Aperture: F1.0
- Base Magnification: Approximately 3×
- Maximum Digital Magnification: Approximately 24×
- Field of View: Approximately 8.8° × 6.6°
- Linear Field of View: Approximately 15.4 × 11.5 m at 100 m
- Display Type: AMOLED
- Display Resolution: 1024 × 768 Pixels
- Thermal Palettes: 8 Modes
- Internal Storage: 16GB
- Video Format: MP4
- Image Format: JPG
- Wi-Fi: Supported
- Supported Mobile Platforms: iOS and Android
- Listed Detection Range: Up to Approximately 2,300 m
- Battery Type: Rechargeable
- Listed Runtime: Up to Approximately 9 Hours
- External Power: USB Type-C
- Water Resistance: IPX7
- Operating Temperature: Approximately -25°C to 50°C
- Housing Material: Metal
640 × 480 Thermal Imaging
The 640 × 480 thermal detector captures differences in infrared energy and converts them into a visible thermal image. Its 12 μm pixel pitch supports detailed heat-signature observation across a variety of lighting and environmental conditions.
The thermal imaging system can be useful for observation in:
- Complete darkness
- Low-light conditions
- Fog and mist
- Changing weather
- Low thermal-contrast environments
- Outdoor nighttime conditions
50 mm F1.0 Germanium Lens
The 50 mm F1.0 germanium objective lens is designed for medium- and long-distance thermal observation. The longer focal length provides a focused field of view while supporting greater apparent subject size when observing distant heat signatures.
Magnification
The listed optical configuration provides approximately:
- Base Magnification: 3×
- Maximum Digital Magnification: 24×
Digital magnification enlarges the displayed thermal image for closer examination of distant subjects. Higher digital magnification enlarges the sensor image rather than increasing its native 640 × 480 resolution.
1024 × 768 AMOLED Display
The internal 1024 × 768 AMOLED display provides a high-resolution viewing interface for thermal imagery, menus, settings, and recorded media.
Eight Thermal Colour Palettes
The device is listed with eight thermal colour modes, allowing the displayed thermal image to be adapted to different observation conditions and viewing preferences.
Photo & Video Recording
Integrated recording functionality allows thermal observations to be captured directly on the device.
- Internal Storage: 16GB
- Video Format: MP4
- Image Format: JPG
- Photo Capture: Supported
- Video Recording: Supported
The built-in storage eliminates the need for a separate recording device during normal operation.
Wi-Fi Connectivity
Integrated Wi-Fi provides wireless connectivity with compatible mobile devices. Depending on the supplied software configuration, wireless functions can support live viewing, file transfer, device settings, and media management.
Rechargeable Battery
The rechargeable battery system provides up to approximately 9 hours of listed operation under selected operating conditions. USB Type-C external power support provides an additional power option for compatible external power sources.
IPX7 Water Resistance
The housing is listed with an IPX7 water-resistance rating, providing protection against temporary water exposure under the conditions defined by the IPX7 standard.
Operating Temperature
The listed operating-temperature range is approximately -25°C to 50°C, supporting operation across a broad range of outdoor environmental conditions.
Suitable Applications
The thermal imaging device can support lawful activities such as:
- Wildlife observation
- Farm and livestock monitoring
- Property inspection
- Search operations
- Nighttime outdoor observation
- Thermal surveying
- Industrial inspection
- Equipment monitoring
- General long-distance thermal observation
