Sytong AM06-35LRF 640×512 Thermal Imaging Scope
Sytong AM06-35LRF 640×512 Thermal Imaging Scope
In stock
Have a question?
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /09/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Observe heat signatures in darkness, fog, smoke, and challenging outdoor conditions with the Sytong AM06-35LRF Thermal Imaging Scope. Featuring a 640 × 512 thermal detector, 12 μm pixel pitch, 35 mm F1.0 objective lens, and 1024 × 768 OLED display, this thermal optic provides detailed imaging for long-distance outdoor observation.
The device combines approximately 2× base magnification, stepped digital zoom up to 8×, Picture-in-Picture viewing, thermal tracking, recording, Wi-Fi connectivity, and expandable storage in a compact thermal imaging platform.
Key Features
- 640 × 512 thermal sensor resolution
- 12 μm pixel pitch
- NETD ≤18 mK
- 35 mm F1.0 objective lens
- Approximately 2× base magnification
- 1×, 2×, 4× and 8× digital zoom
- Thermal detection up to approximately 1,750 m
- 1024 × 768 OLED display
- Multiple thermal colour palettes
- Picture-in-Picture mode
- Photo and video recording
- Wi-Fi connectivity
- Mobile application support
- Thermal tracking
- Integrated 3D gyroscope
- TF memory card support up to 128GB
- Approximately 8–10 hours listed battery operation
- IP67 environmental protection
Product Specifications
- Model: AM06-35LRF
- Product Type: Thermal Imaging Scope
- Thermal Resolution: 640 × 512 Pixels
- Pixel Pitch: 12 μm
- Thermal Sensitivity: NETD ≤18 mK
- Objective Lens: 35 mm
- Lens Aperture: F1.0
- Base Magnification: Approximately 2×
- Digital Zoom: 1× / 2× / 4× / 8×
- Detection Distance: Up to Approximately 1,750 m
- Display Type: 0.39-Inch OLED
- Display Resolution: 1024 × 768 Pixels
- Picture-in-Picture: Yes
- Photo Recording: Supported
- Video Recording: Supported
- Wi-Fi: Supported
- Mobile Application: Supported
- Thermal Tracking: Supported
- 3D Gyroscope: Supported
- Memory: TF Card Support up to 128GB
- Battery: Rechargeable Lithium Battery System
- Operating Time: Approximately 8–10 Hours
- Operating Temperature: Approximately -20°C to 50°C
- Protection Rating: IP67
The source provides these core technical specifications while noting that the exact brand, LRF configuration, display version, recoil rating, and warranty require verification.
640 × 512 Thermal Imaging
The AM06-35LRF uses a 640 × 512 thermal detector with a 12 μm pixel pitch to capture differences in infrared energy and produce a visible thermal image.
The higher native sensor resolution supports detailed observation, improved separation between nearby heat signatures, and more usable image information when digital magnification is applied.
≤18 mK Thermal Sensitivity
The thermal detector is listed with a NETD of 18 mK or lower. Lower NETD values indicate greater sensitivity to small temperature differences, supporting detailed thermal imaging in low-contrast environments.
This can be particularly useful when viewing in:
- Fog and mist
- High humidity
- Light rain
- Low thermal contrast
- Changing temperatures
- Uniform backgrounds

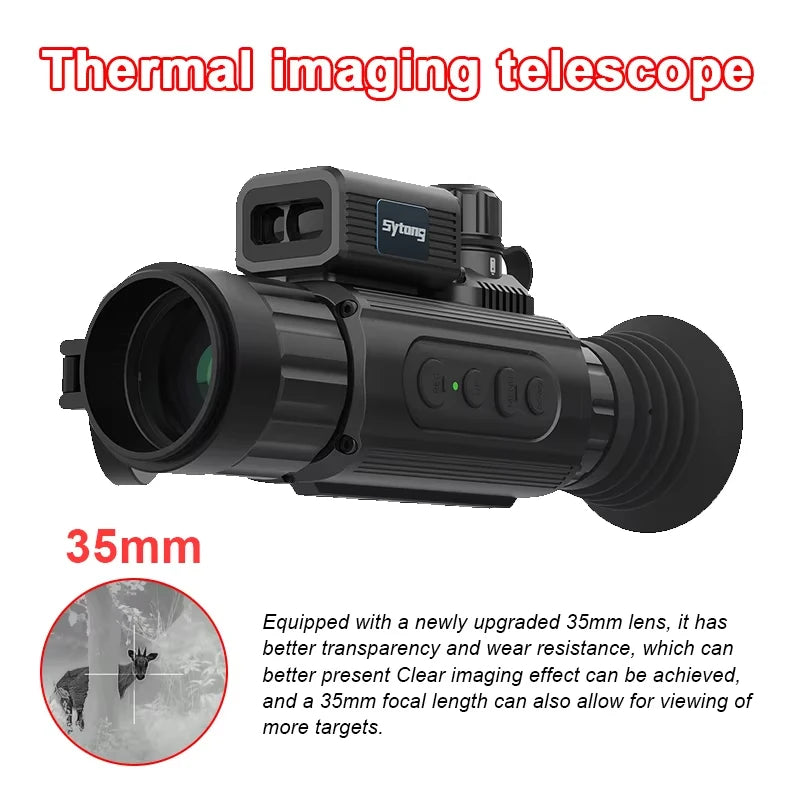

35 mm F1.0 Objective Lens
The 35 mm F1.0 objective lens provides a balance between field of view, magnification, thermal energy collection, observation distance, and overall device size.
2× Magnification & 8× Digital Zoom
The listed optical configuration provides:
- Base Magnification: Approximately 2×
- Digital Zoom: 1×, 2×, 4× and 8×
The stepped digital zoom allows users to enlarge selected areas of the thermal image for closer observation.
Long-Range Thermal Detection
The AM06-35LRF has a listed thermal detection distance of up to approximately 1,750 metres.
Detection performance depends on environmental conditions, temperature contrast, subject dimensions, atmospheric interference, lens focus, and image settings.
OLED Display
The standard configuration uses a 0.39-inch OLED display with 1024 × 768 resolution, providing a detailed internal viewing interface for thermal images, menus, settings, and recorded media.
Multiple Thermal Image Modes
Available thermal palettes listed for the device include:
- White Hot
- Black Hot
- Sky Mode
- Red Hot
- False Colour
- Thermal Mode
These viewing modes provide different representations of temperature variations within the observed scene.
Picture-in-Picture Mode
Picture-in-Picture provides an enlarged section of the thermal image while retaining the wider scene on the main display.
This provides a convenient way to examine smaller thermal details while maintaining awareness of the surrounding viewing area.
Photo & Video Recording
Integrated recording allows users to capture thermal images and videos directly through the device.
The system supports TF memory cards up to 128GB, providing expandable storage for recorded media.
Wi-Fi Connectivity
Built-in Wi-Fi supports connection with compatible smartphones and tablets. Depending on the supplied mobile application, supported functions can include live viewing, remote device control, media transfer, firmware updates, and device configuration.
Thermal Tracking & 3D Gyroscope
The integrated thermal tracking function can assist with highlighting prominent heat signatures within the displayed thermal scene.
A built-in 3D gyroscope supports orientation-related functions such as device-angle and cant-angle indication.
Rechargeable Battery
The listed rechargeable lithium battery system provides approximately 8–10 hours of operating time under selected conditions.
Operating duration can be influenced by display brightness, recording, Wi-Fi, digital zoom, thermal tracking, ambient temperature, and battery condition.
IP67 Environmental Protection
The IP67-rated housing provides dust protection and resistance to temporary water exposure under the conditions defined by the IP67 standard, supporting outdoor use in changing environmental conditions.
Suitable Applications
The Sytong AM06-35LRF can support lawful thermal-imaging activities such as:
- Wildlife observation
- Farm and livestock monitoring
- Property inspection
- Search operations
- Nighttime outdoor observation
- Thermal surveying
- Industrial inspection
- Equipment monitoring
- Long-distance heat-source observation
