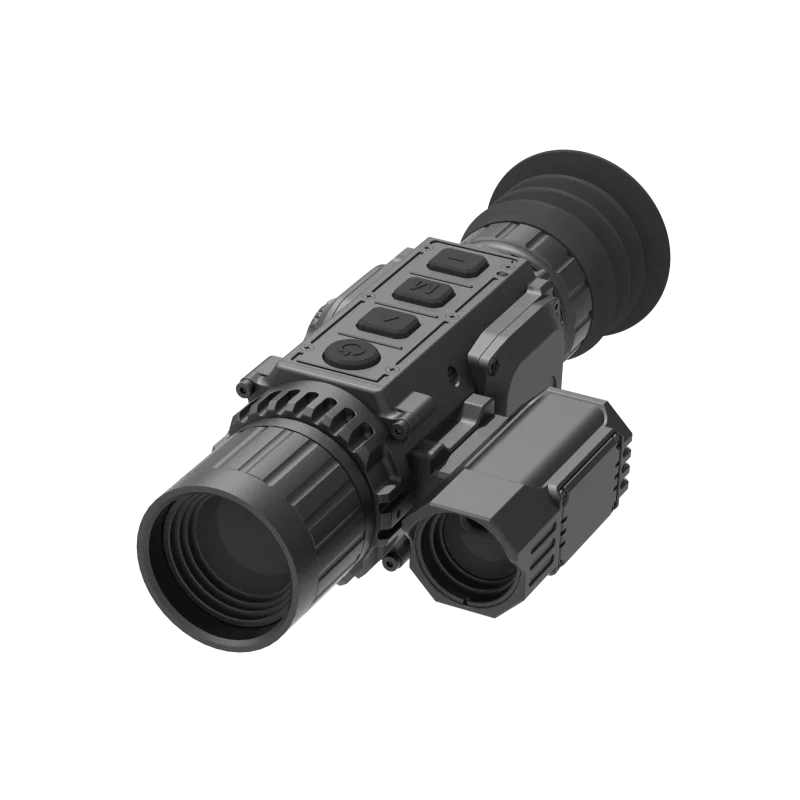

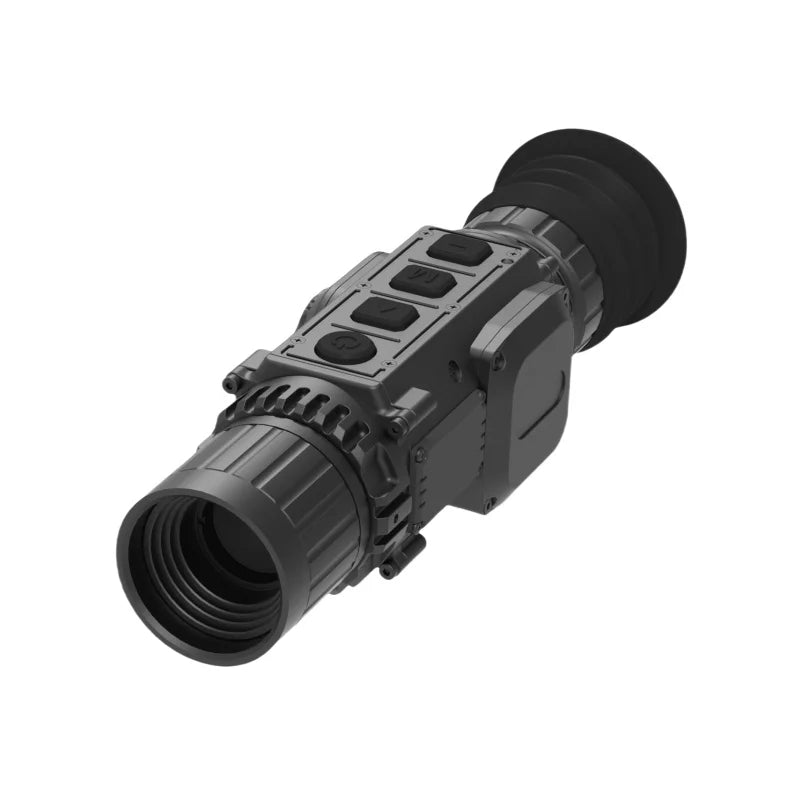

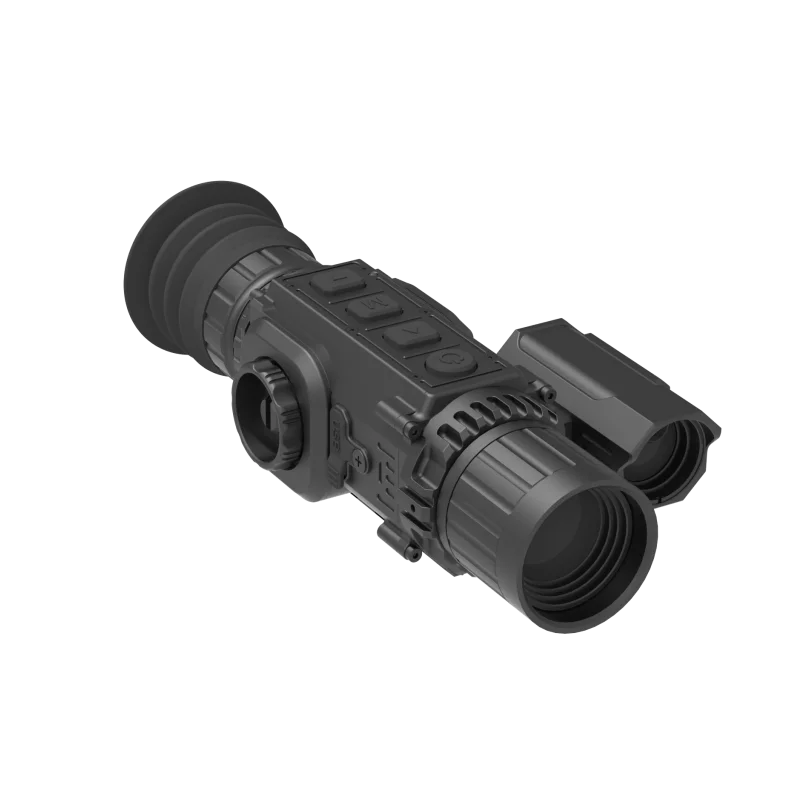

TS-335LRF 384×288 Thermal Imaging Monocular with 35mm Lens & Laser Rangefinder
The TS-335LRF Thermal Imaging Monocular is a compact long-range infrared observation device designed for wildlife viewing, farm and property monitoring, outdoor exploration, search-support activities, equipment inspection and general thermal observation.
Featuring a 384 × 288 uncooled VOx thermal detector, 12 μm pixel pitch and a 35mm F1.0 objective lens, the TS-335LRF delivers detailed thermal imaging for use during both day and night. An integrated Laser Rangefinder (LRF) provides convenient distance-measurement functionality while observing targets outdoors.
The device also features 1×, 2× and 4× digital enlargement, Picture-in-Picture (PIP), hotspot tracking, multiple thermal colour palettes, Wi-Fi connectivity, photo and video recording, a rechargeable lithium-ion battery and an IP66-rated enclosure.
Key Features
-
384 × 288 VOx Thermal Detector – Provides detailed infrared imaging for observing heat signatures during day or night.
-
12 μm Pixel Pitch – High-density detector configuration designed for detailed thermal observation.
-
35mm F1.0 Objective Lens – Designed to balance subject detail, viewing area and longer-distance observation.
-
Integrated Laser Rangefinder (LRF) – Measures distance to compatible targets within the supported ranging capabilities.
-
1× / 2× / 4× Digital Zoom – Provides selectable digital enlargement for closer observation.
-
0.39-Inch OLED Display – Compact high-contrast display for thermal viewing.
-
Picture-in-Picture (PIP) – Magnifies a selected area while maintaining awareness of the wider thermal scene.
-
Hotspot Tracking – Helps identify and highlight the warmest area within the displayed scene.
-
Multiple Thermal Palettes – Includes White Hot, Black Hot and pseudocolour viewing modes.
-
Wi-Fi Connectivity – Supports wireless image transmission and compatible connected-device functionality.
-
Photo & Video Recording – Capture thermal observations for later viewing.
-
Rechargeable Lithium-Ion Battery – Provides more than approximately four hours of listed operating time under stated conditions.
-
IP66 Protection Rating – Designed to provide dust protection and resistance to strong water jets under controlled conditions.
-
Wide Operating Temperature – Listed for operation from approximately -20°C to 55°C.
Product Specifications
Model: TS-335LRF
Product Type: Thermal Imaging Monocular
Detector Type: Uncooled VOx Thermal Detector
Thermal Resolution: 384 × 288 Pixels
Pixel Pitch: 12 μm
Objective Lens: 35mm
Lens Aperture: F1.0
Digital Zoom: 1× / 2× / 4×
Display Type: OLED
Display Size: 0.39 Inch
Thermal Palettes: White Hot, Black Hot & Pseudocolour
Picture-in-Picture: Supported
Hotspot Tracking: Supported
Laser Rangefinder: Integrated
Photo Capture: Supported
Video Recording: Supported
Wi-Fi: Supported
Battery Type: Rechargeable Lithium-Ion
Listed Operating Time: More Than Approximately 4 Hours
Operating Voltage: Listed as 5V
Protection Rating: IP66
Operating Temperature: Approximately -20°C to 55°C
Weight: Approximately 600g
Country of Origin: China
384 × 288 VOx Thermal Imaging
The TS-335LRF uses a 384 × 288 uncooled vanadium oxide (VOx) thermal detector with a 12 μm pixel pitch.
The detector senses infrared energy emitted by objects and converts differences in temperature into a visible thermal image. This allows users to observe heat signatures without relying on conventional visible illumination.
The 384×288 sensor provides useful thermal detail for outdoor observation, including wildlife monitoring, property inspection, equipment checks and scanning larger outdoor areas.
35mm F1.0 Objective Lens
The 35mm F1.0 thermal objective lens is designed to provide a practical balance between field of view, subject detail and medium-to-long-distance thermal observation.
Combined with the 384×288 thermal detector, the 35mm lens makes the TS-335LRF suitable for observing heat signatures across open outdoor environments.
Integrated Laser Rangefinder
The TS-335LRF features an integrated Laser Rangefinder (LRF) for measuring the distance to compatible observed targets.
The supplied specifications list LRF ranging capabilities of approximately 1,000 to 1,500 metres, depending on the target and operating conditions.
Rangefinder performance can vary according to target size, surface reflectivity, atmospheric conditions, viewing angle and other environmental factors.
Long-Range Thermal Detection
The supplied specifications list thermal detection distances of up to approximately:
Human-Sized Target: 1,450 metres
Vehicle-Sized Target: 3,400 metres
These figures represent thermal detection distances, not guaranteed recognition or identification distances.
Detection means that a thermal object may be distinguishable from its background. The ability to recognise or positively identify an object requires greater image detail and will generally occur at shorter distances.
Actual performance depends on target dimensions, temperature contrast, weather conditions, atmospheric conditions, lens focus and device settings.
1×, 2× & 4× Digital Zoom
Selectable 1×, 2× and 4× digital enlargement allows users to increase the apparent size of thermal subjects on the display.
Digital zoom electronically enlarges the captured thermal image and does not increase the native 384×288 sensor resolution. Fine detail may therefore decrease at higher zoom levels.
Picture-in-Picture Mode
The Picture-in-Picture (PIP) function displays an enlarged section of the thermal image while preserving the wider scene.
This provides a convenient way to examine smaller or more distant heat signatures while maintaining awareness of the surrounding environment.
Hotspot Tracking
Built-in hotspot tracking can identify and highlight the warmest visible area within the thermal scene.
This feature can be useful for equipment inspection, property monitoring and general heat-source location.
Hotspot tracking identifies temperature differences and should not be interpreted as automatic object identification.
Multiple Thermal Colour Palettes
Choose between multiple thermal viewing modes to adapt the display to different environments and personal preferences.
Listed modes include:
-
White Hot
-
Black Hot
-
Pseudocolour
Additional palette options may be available depending on the production firmware.
Wi-Fi Connectivity
Built-in Wi-Fi connectivity supports wireless image transmission and compatible connected-device functionality.
Available wireless features may vary according to the compatible mobile application, firmware version and connected device.
Photo & Video Recording
The TS-335LRF supports photo capture and video recording, allowing thermal observations to be documented for later review.
Recording resolution and available storage capacity may depend on the selected product configuration.
Rechargeable Battery
A rechargeable lithium-ion battery provides portable cordless operation, with a listed operating time of more than approximately four hours under stated conditions.
Actual battery life may vary according to Wi-Fi use, video recording, display settings, rangefinder use, digital zoom, environmental temperature and battery condition.
IP66 Environmental Protection
The TS-335LRF carries a listed IP66 protection rating, providing a dust-tight enclosure and resistance to strong water jets under controlled test conditions.
IP66 does not mean the device is designed for underwater use or continuous immersion.
Suitable Applications
The TS-335LRF is suitable for a variety of thermal observation applications, including:
-
Wildlife observation
-
Farm and livestock monitoring
-
Property monitoring and inspection
-
Camping and outdoor exploration
-
Night-time observation
-
Search-support activities
-
Equipment inspection
-
General heat-source detection
-
Remote-area observation
-
Long-distance thermal surveying
-
General thermal imaging
Important Product Information
Thermal detection, recognition and identification distances are different measurements and should not be interpreted as the same capability.
Actual thermal performance depends on target size, temperature contrast, weather, humidity, atmospheric conditions, lens focus, distance and selected device settings.
Thermal imaging detects differences in infrared energy and does not provide the same type of visual image as a conventional daylight camera or colour digital night-vision device.
Safety & Care
Avoid pointing the thermal detector directly toward the sun, welding arcs or other intense energy sources that may damage the sensor.
Never direct the laser rangefinder toward people's eyes, aircraft, moving vehicles or other situations where laser exposure could create a safety hazard.
Use suitable batteries, chargers and accessories, and keep protective covers securely closed during outdoor operation. Follow applicable privacy, observation and laser-safety regulations.
