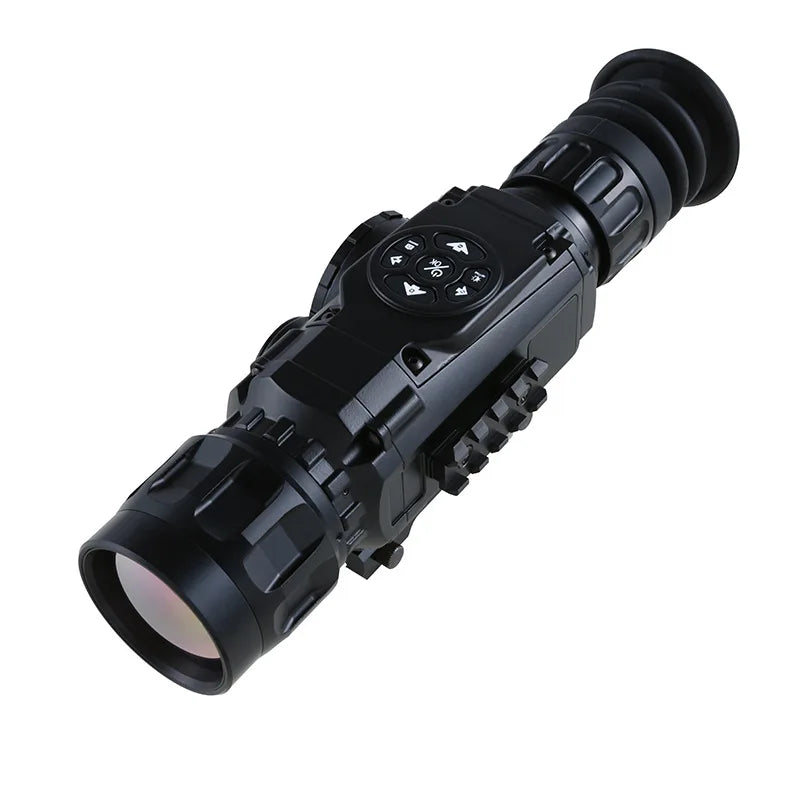

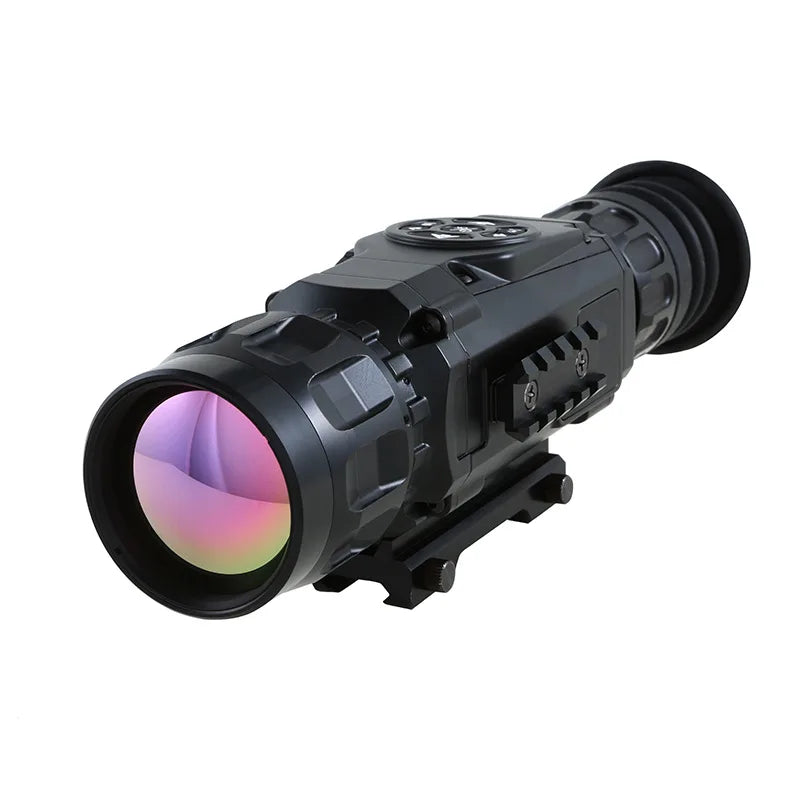

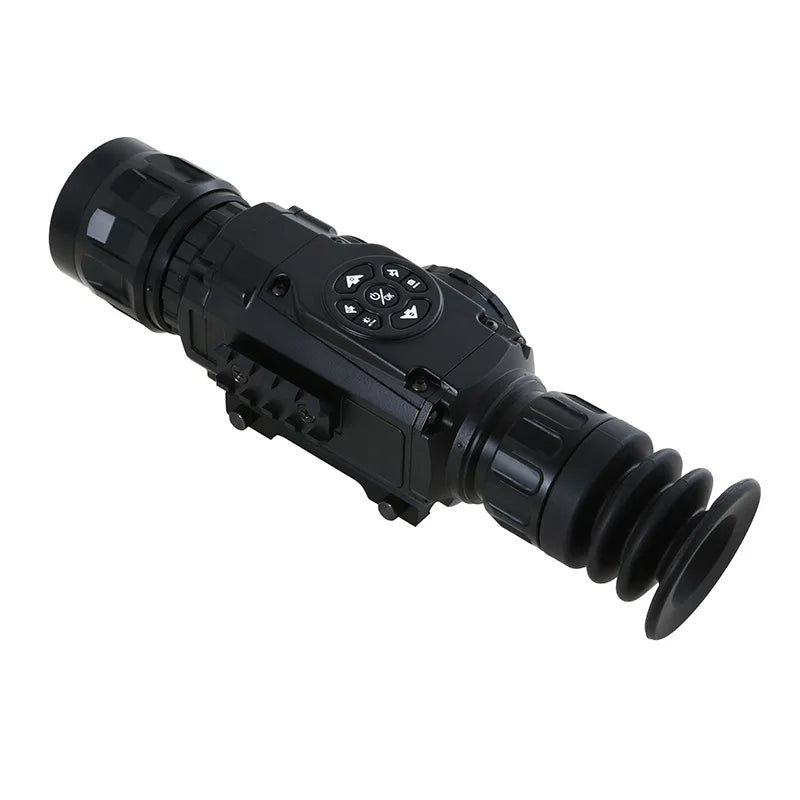

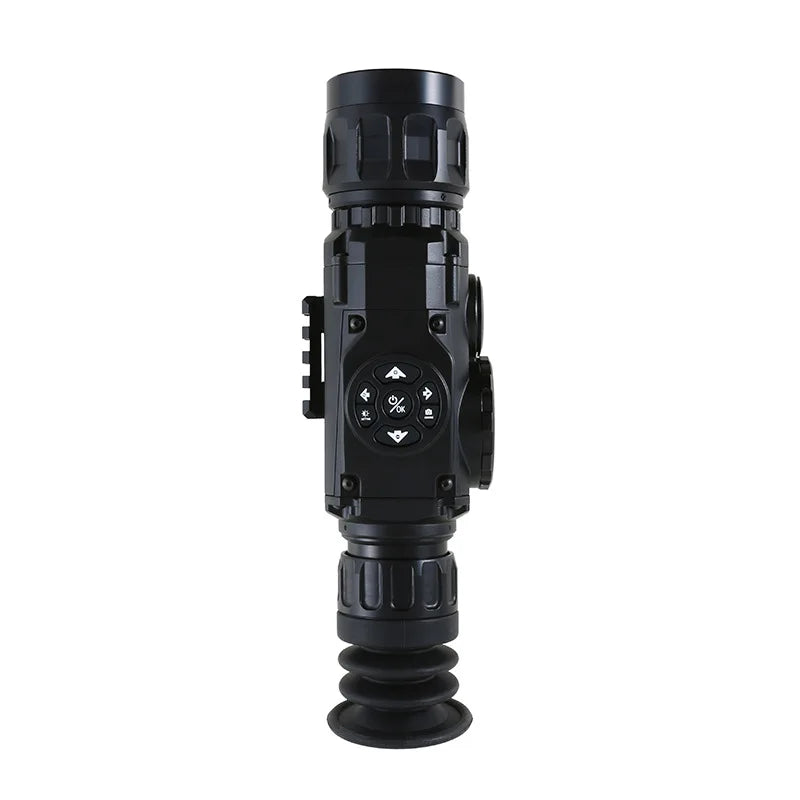

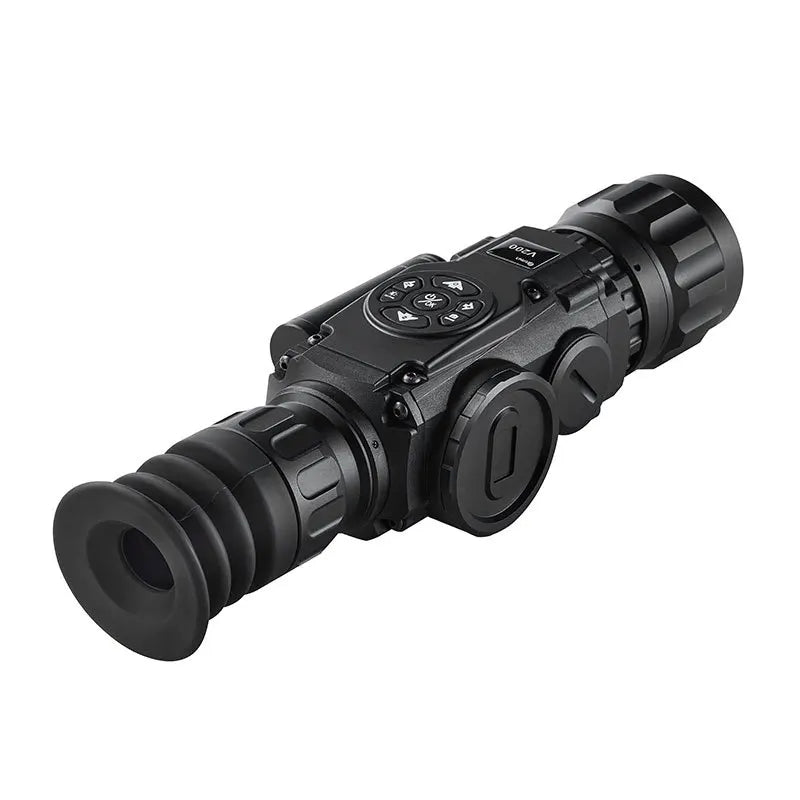

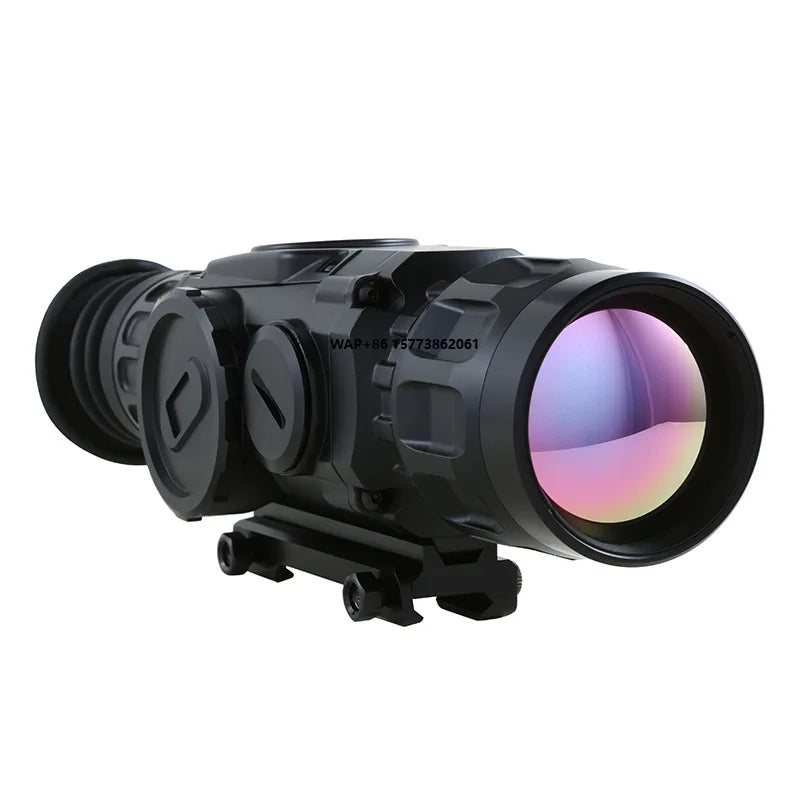

MAIP MP50-DG 384×288 Thermal Imaging Monocular with 50mm Lens & Wi-Fi
MAIP MP50-DG 384×288 Thermal Imaging Monocular with 50mm Lens & Wi-Fi
In stock
Have a question?
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /09/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
The MP50-DG Thermal Imaging Monocular is a portable thermal observation device designed for outdoor viewing, wildlife observation, property inspection, search activities, industrial inspection, and nighttime monitoring.
Equipped with a 384 × 288 vanadium oxide uncooled thermal detector, 17 μm pixel pitch, 50 mm objective lens, and 30 Hz refresh rate, the MP50-DG detects heat signatures without relying on visible light, supporting observation in darkness and challenging visibility conditions.
The monocular provides 4.1× optical magnification with 1–12× digital zoom, allowing users to examine distant thermal subjects while maintaining a compact handheld design. Integrated Wi-Fi provides wireless connectivity with compatible devices.
Key Features
- 384 × 288 thermal resolution
- Vanadium oxide uncooled thermal detector
- 17 μm pixel pitch
- 50 mm objective lens
- 30 Hz refresh rate
- 4.1× base magnification
- 1–12× digital zoom
- 13.3° × 10° field of view
- Integrated Wi-Fi connectivity
- Durable alloy housing
- Portable handheld monocular design
- Operating temperature from -40°C to 60°C
- One-year warranty
Product Specifications
- Model: MP50-DG
- Product Type: Thermal Imaging Monocular
- Detector Type: Vanadium Oxide Uncooled Detector
- Thermal Resolution: 384 × 288 Pixels
- Pixel Pitch: 17 μm
- Frame Rate: 30 Hz
- Objective Lens: 50 mm
- Base Magnification: 4.1×
- Digital Zoom: 1–12×
- Field of View: 13.3° × 10°
- Wi-Fi Connectivity: Yes
- Housing Material: Alloy
- Operating Temperature: -40°C to 60°C
- Operating Humidity: Below 90% RH
- Warranty: 1 Year
384 × 288 Thermal Imaging
The 384 × 288 thermal detector captures differences in heat and converts them into a visible thermal image. Because thermal imaging detects infrared energy rather than relying on visible light, the MP50-DG can be used for observation in complete darkness and low-light environments.
50mm Objective Lens
The 50 mm objective lens provides focused thermal observation for viewing subjects at greater distances. Combined with the 384 × 288 detector, it is suitable for scanning outdoor areas and examining distant heat signatures.
4.1× Magnification & 1–12× Digital Zoom
The MP50-DG provides 4.1× base magnification with adjustable 1–12× digital zoom for closer examination of thermal subjects.
Digital magnification enlarges the displayed thermal image, providing additional flexibility when switching between general observation and closer viewing.
30Hz Refresh Rate
The 30 Hz refresh rate provides responsive thermal viewing when scanning an area, following moving subjects, walking, or performing inspection work.
Wi-Fi Connectivity
Built-in Wi-Fi provides wireless connectivity for compatible mobile devices and supported software. Available functions depend on the application and device configuration.
Durable Alloy Housing
The alloy housing provides a rigid and durable structure suitable for portable outdoor and commercial use while protecting the internal thermal imaging components during normal handling.
Suitable Applications
The MP50-DG is suitable for:
- Wildlife observation
- Farm and livestock monitoring
- Property inspection
- Search operations
- Electrical inspection
- Mechanical inspection
- Building inspection
- Heat-source observation
- Industrial maintenance
- Camping and outdoor exploration
- Nighttime observation
- General thermal surveying
Operating Environment
The listed operating temperature range is -40°C to 60°C, with operating humidity below 90% RH, supporting use across a broad range of environmental conditions.
For reliable operation, keep the objective lens clean and protect the thermal detector from direct exposure to extremely intense energy sources.
Warranty
- Warranty Period: 1 Year
Warranty coverage should follow the terms supplied with the purchased unit.
Description
Description
The MP50-DG Thermal Imaging Monocular is a portable thermal observation device designed for outdoor viewing, wildlife observation, property inspection, search activities, industrial inspection, and nighttime monitoring.
Equipped with a 384 × 288 vanadium oxide uncooled thermal detector, 17 μm pixel pitch, 50 mm objective lens, and 30 Hz refresh rate, the MP50-DG detects heat signatures without relying on visible light, supporting observation in darkness and challenging visibility conditions.
The monocular provides 4.1× optical magnification with 1–12× digital zoom, allowing users to examine distant thermal subjects while maintaining a compact handheld design. Integrated Wi-Fi provides wireless connectivity with compatible devices.
Key Features
- 384 × 288 thermal resolution
- Vanadium oxide uncooled thermal detector
- 17 μm pixel pitch
- 50 mm objective lens
- 30 Hz refresh rate
- 4.1× base magnification
- 1–12× digital zoom
- 13.3° × 10° field of view
- Integrated Wi-Fi connectivity
- Durable alloy housing
- Portable handheld monocular design
- Operating temperature from -40°C to 60°C
- One-year warranty
Product Specifications
- Model: MP50-DG
- Product Type: Thermal Imaging Monocular
- Detector Type: Vanadium Oxide Uncooled Detector
- Thermal Resolution: 384 × 288 Pixels
- Pixel Pitch: 17 μm
- Frame Rate: 30 Hz
- Objective Lens: 50 mm
- Base Magnification: 4.1×
- Digital Zoom: 1–12×
- Field of View: 13.3° × 10°
- Wi-Fi Connectivity: Yes
- Housing Material: Alloy
- Operating Temperature: -40°C to 60°C
- Operating Humidity: Below 90% RH
- Warranty: 1 Year
384 × 288 Thermal Imaging
The 384 × 288 thermal detector captures differences in heat and converts them into a visible thermal image. Because thermal imaging detects infrared energy rather than relying on visible light, the MP50-DG can be used for observation in complete darkness and low-light environments.
50mm Objective Lens
The 50 mm objective lens provides focused thermal observation for viewing subjects at greater distances. Combined with the 384 × 288 detector, it is suitable for scanning outdoor areas and examining distant heat signatures.
4.1× Magnification & 1–12× Digital Zoom
The MP50-DG provides 4.1× base magnification with adjustable 1–12× digital zoom for closer examination of thermal subjects.
Digital magnification enlarges the displayed thermal image, providing additional flexibility when switching between general observation and closer viewing.
30Hz Refresh Rate
The 30 Hz refresh rate provides responsive thermal viewing when scanning an area, following moving subjects, walking, or performing inspection work.
Wi-Fi Connectivity
Built-in Wi-Fi provides wireless connectivity for compatible mobile devices and supported software. Available functions depend on the application and device configuration.
Durable Alloy Housing
The alloy housing provides a rigid and durable structure suitable for portable outdoor and commercial use while protecting the internal thermal imaging components during normal handling.
Suitable Applications
The MP50-DG is suitable for:
- Wildlife observation
- Farm and livestock monitoring
- Property inspection
- Search operations
- Electrical inspection
- Mechanical inspection
- Building inspection
- Heat-source observation
- Industrial maintenance
- Camping and outdoor exploration
- Nighttime observation
- General thermal surveying
Operating Environment
The listed operating temperature range is -40°C to 60°C, with operating humidity below 90% RH, supporting use across a broad range of environmental conditions.
For reliable operation, keep the objective lens clean and protect the thermal detector from direct exposure to extremely intense energy sources.
Warranty
- Warranty Period: 1 Year
Warranty coverage should follow the terms supplied with the purchased unit.
